Hitachi ZW100-G

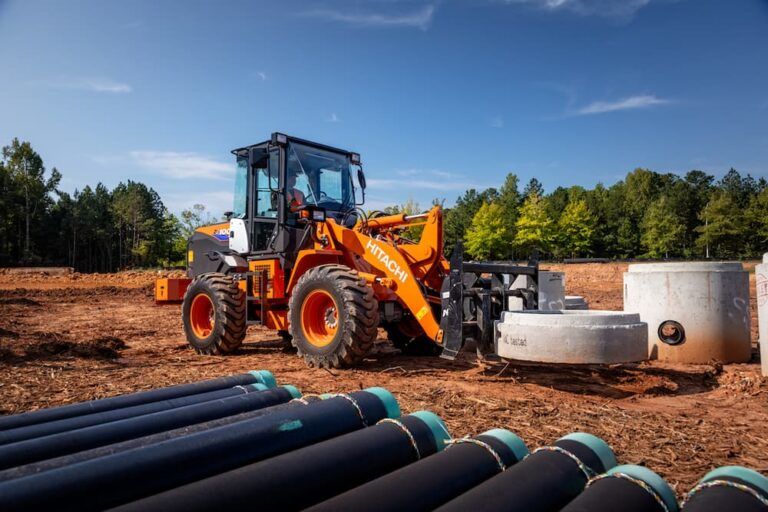

Available with bucket or forks


  • Engine ModelKUBOTA V3800-DI-T
    Engine Type4-cycle water-cooled,direct injection
    Engine AspirationTurbo charger
    Engine No. of cylinders 4
    Engine Maximum power62 kW (83 HP) at 2 100 min-1(2 100 rpm)
    Engine Bore and stroke100 mm x 120 mm
    Engine Piston displacement3.769 L
    Engine Batteries12V× 662 CCA, 159-min.rated reserve
    Engine Air cleanerDouble stage dry type
    Transmission controlsHydrostatic (HST) transmission automatically controls power and 2-speed
    Travel speed : Forward & Reverse34.5 km/h with 16.9-24-10PR tires
    Drive systemFour-wheel drive system
    Front & rear axleSemi-floating
    Oscillation angleTotal 24° (±12°)
    Final drivesHeavy-duty, planetary final drive
    Tyres Standard16.9-24-10PR (L2)
    Service brakesInboard mounted fully hydraulic wet disk
    Service brakesSpring applied hydraulic released wet disk
    Steering typeArticulated frame steering
    Minimum turning radius at the centerline of outside tire4440 mm
    HydraulicsArm and bucket are controlled by mechanical single control lever
    Hydraulic cycle times Arm raise5.0 s
    Hydraulic cycle times Arm lower3.0 s
    Hydraulic cycle times Bucket dump1.0 s
    Bucket capacity1.3m3
    Overall length6235mm
    Wheel base2600mm
    Overall operating height4530mm
