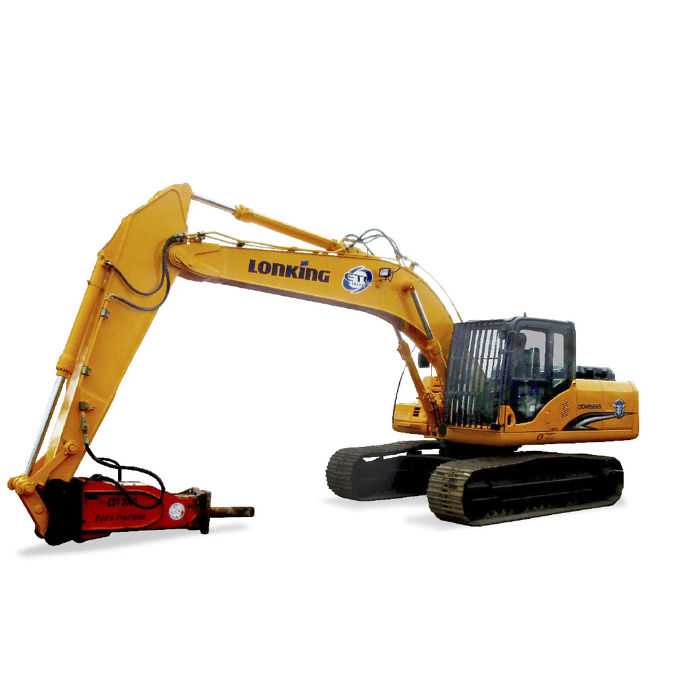

Lonking CDM6225 Rock Breaker

Lonking CDM6225 Rock Breaker

Construction Machinery CDM6225 features:

  • Cummins TDCI 4-cylinder engine
  • Air-air inter cooling system with parallel radiator
  • Dual-pump double-circuit constant power control hydraulic system
  • Multi-purpose true color monitor with large screen
  • No frame cab glasses to enlarge the visual field
  • High performance and healthy A/C allows the air circulate
  • Comfortable suspension seat with hydraulic damper
  • Safe and comfortable cabin with 2.7m³ inner space
  • Reasonable layout of robust main frame
  • X-shaped undercarriage with heavy-duty box structure
  • Free maintenance track with non- lubricated pins
  • Heavy-duty boom and arm with high strength low alloy structural steels
  • Rock Breaker attachment specs are TBD
  • Operating Weight21800 kg
    Travel Speed3.33 / 5.54 km/h
    Swing Speed11.6 rpm
    Gradeability35° (70%)
    Engine ModelCummins 6BTAA5.9-C (Euro II)
    Rated Power112 kW (150 hp) /1950 rpm
    Displacement5.9 L
    Fuel Tank380 L
    Hydraulic Max. Pressure of Implements34.3 Mpa
    Hydraulic Max. Flow Of System208×2 L/min
    Hydraulic Oil Tank280 L
    Boom Length5675 mm
    Arm Length2920 mm
    Max. Torque 614 N.m
    Transport Height 3.25 m
