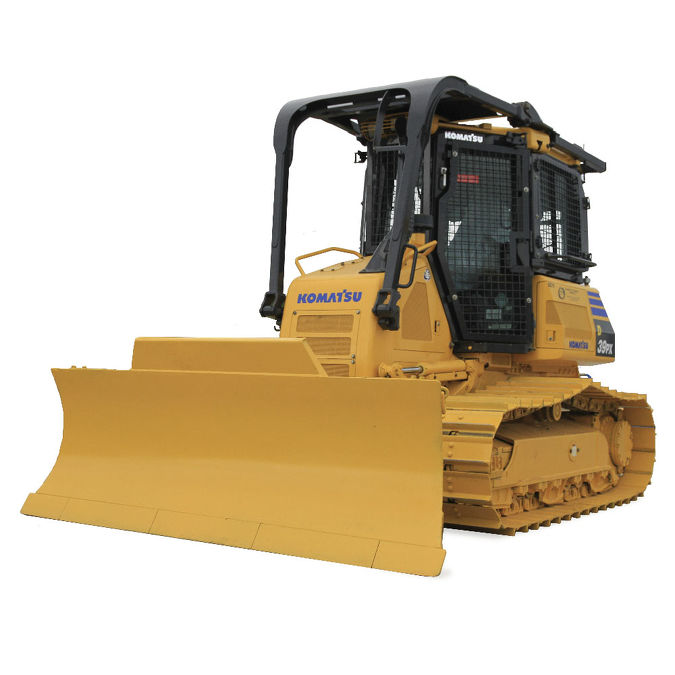

Komatsu D39PX-23
- New power and economy modes - Full power when you need it and Economy mode to save fuel when you don't.
- New engine and hydrostatic pump - Its control technology improves operational efficiency and lowers fuel consumption.
- Unrivaled Blade Visibility - The D39PX incorporates Komatsu’s super-slant nose design. Komatsu’s innovative design provides excellent blade visibility for improved machine control and increased efficiency and productivity.
- Advanced Electronic Control System - The engine control system has been upgraded to effectively manage a variety of parameters such as the air flow rate, EGR gas flow rate, fuel injection parameters, and aftertreatment functions. The new control system also provides enhanced diagnostic capabilities.
- Environment-Friendly Engine - The Komatsu SAA4D95LE-6 engine is EPA Tier 4 Interim and EU Stage 3B emissions certified and provides exceptional performance while reducing fuel consumption. Based on Komatsu proprietary technologies developed over many years, this new diesel engine reduces exhaust gas particulate matter (PM) by more than 90% and nitrogen oxide (NOx) by more than 45%, compared to Tier 3 levels.
Engine Model Komatsu SAA4D95LE-6 Type 4-Cycle, Water-Cooled, Direct Injection No. Of Cylinders 4 Bore 95 mm Stroke 115 mm Piston Displacement 3.26 L Rated rpm 2200 rpm Net Horsepower 105 hp At 2200 rpm Fan Drive Type Hydraulic Travel Speed 0-8.5 km/h Operating Weight (Approx.) 9830 kg Fuel Tank 190 L Engine Oil 11 L Hydraulic Tank 60 L Coolant 34 L Blade Capacity 2.22 - 2.40 m³
