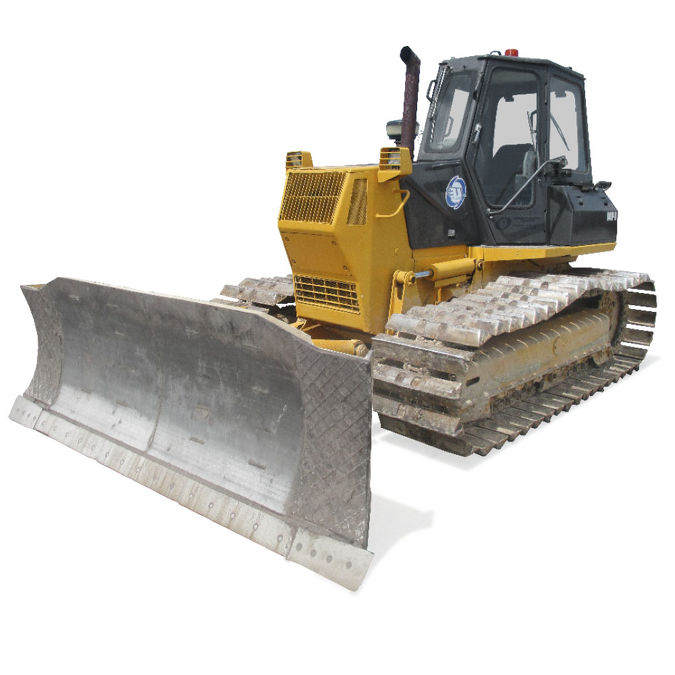

Komatsu D41PX-7
- The Komatsu S6D102E-1 turbocharged diesel engine provides an output of 82 kW 110 HP, with excellent productivity, while meeting current emissions standards.
- Left hand joystick controls all tractor motion. Right hand joystick controls all blade movements.
- Blade tilt lines completely protected.
- Komatsu Hydroshift transmission offers single lever control of speed (3 forward and 3 reverse) and directional changes.
- Electronic Monitoring System prevents minor problems from developing into major ones.
- Wet, disc brakes eliminates brake-band adjustments for maintenance-free operation.
Engine Model Komatsu S6D102E-1 No. Of Cylinders 6 Bore 102 mm Stroke 120 mm Displacement 5.88 L Rated rpm 2400 rpm Engine Power 82 kW / 110 HP At 2,400 rpm Net Maximum Torque 47 kg•m At 1300 rpm Travel Speed 2.4 - 7.6 km/h Operating Weight (Approx.) 11340 kg Fuel Tank 225 L Engine Oil 22.8 L Coolant 28 L Max. Drawbar Pull 144 kN / 14700 kgf Minimum Turning Radius (Counter-Rotation) 2.6 m
