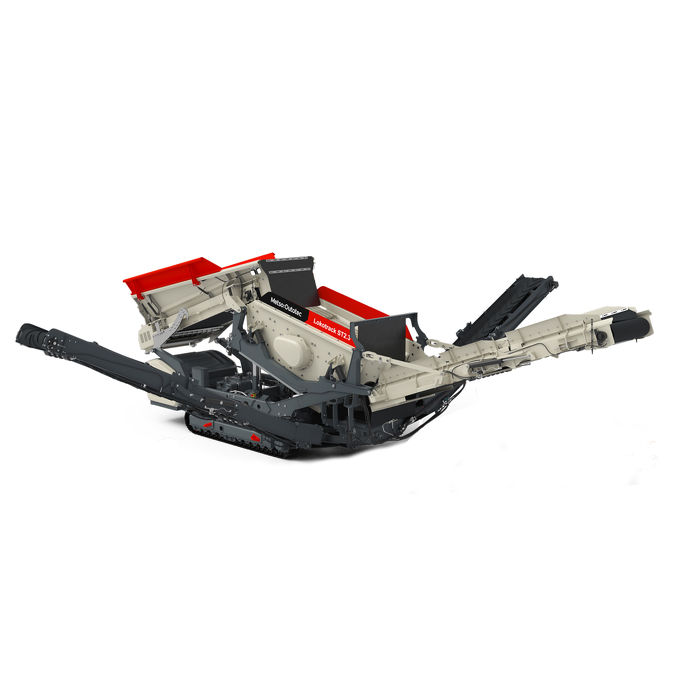

Metso ST2.3 Mobile Screen

Metso ST2.3 Mobile Screen

The Metso ST2.3 is our most compact mobile screen for primary scalping. With its aggressive stroke, wide screen and adjustable screen angle it is ideal for general contractors with various feed materials such as topsoil and recycled concrete waste.

  • Screen Size3,040 x 1,520 mm
    Screening Area4.6 m²
    Nominal Capacity350 Mtph
    StrokeUp to 13 mm
    Feeder TypeBelt feeder
    Hopper Volume4.5 m3
    Loading Height2,500 - 3,000 mm
    Loading Width2,300 mm
    Max Feed Size400 mm
    Conveyor oversize width1,200 mm
    Side conveyor midsize width650 mm
    Side conveyor undersize width650 mm
    Engine ModelCAT C3.6
    Power100 kW
    Fuel tank260L
    Hydraulic oil100L
