Metso ST2.8 Mobile ScreenMetso ST2.8 Mobile Screen
Metso ST2.8 Mobile ScreenMetso ST2.8 Mobile Screen

Metso ST2.8 Mobile Screen

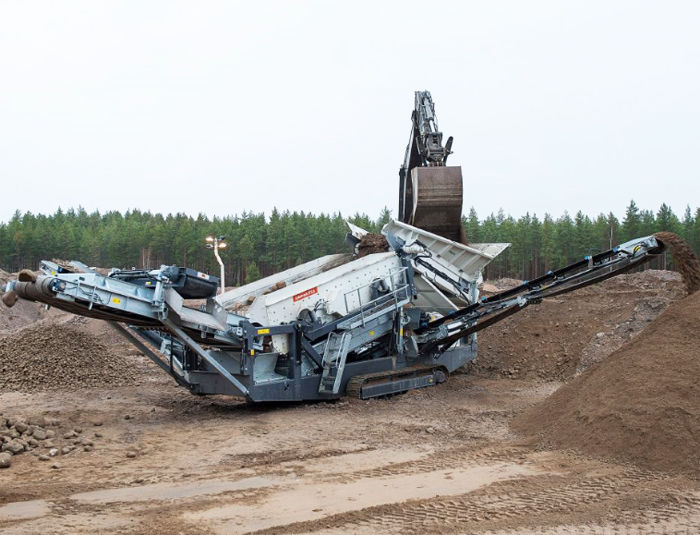

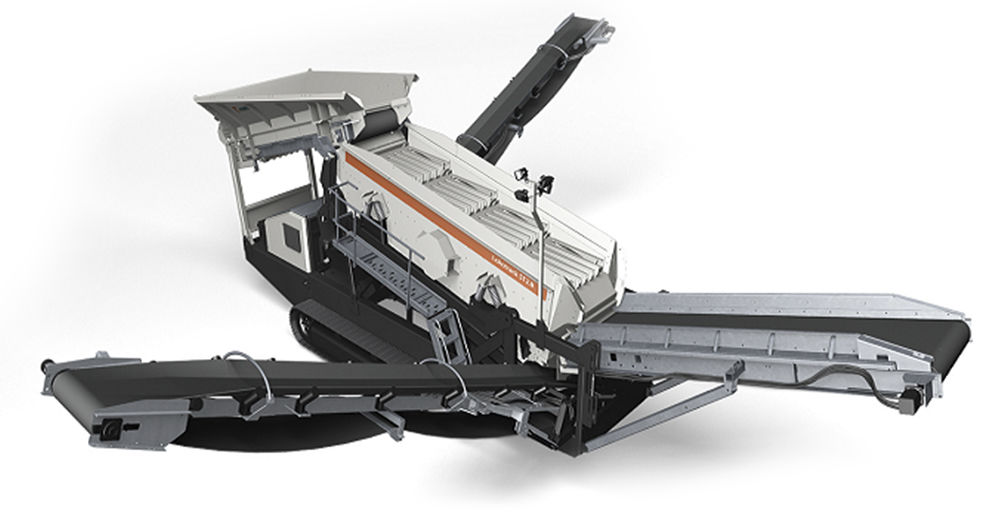

Lokotrack ST2.8 mobile scalping screen is often used as primary
scalper in top soil and natural sand applications. It is suitable in multistage
crushing processes to split the products between secondary and primary crusher.

The scalping screen is fed by the excavator, wheel loader or
conveyor. The feeder lifts the material to two-deck screen which then separates
material to oversize and side conveyors. With two-way split option the top and
bottom deck material can be combined to the oversize conveyor (fines removal).

Versatility

The stickier the feed material, the more throw needed in the scalping
screen. Lokotrack ST2.8 has the biggest eccentric throw on the market to make
it the best unit for the screening of top soil, demolition waste and river
gravel.

Additionally, ST2.8 can be fine-tuned even for sand
applications. The clearance under the screen has been increased by 20% and the
bottom deck area made larger as well.

  • Screen Size4,860 x 1,520 mm (16’ x 5’)
    Screen Area7.4 m2 (79 ft2)
    Screen Working Angle10-17°
    Decks2
    Feed Hopper4.5 m³ (5.9 yd³)
    Weight26,000 kg (57,000 lbs)
    BiPower2 x 45 kW
    EngineCAT 106 kW (142 hp)*
    Attachments & Extras65mm Bottom Media
