Bobcat E55

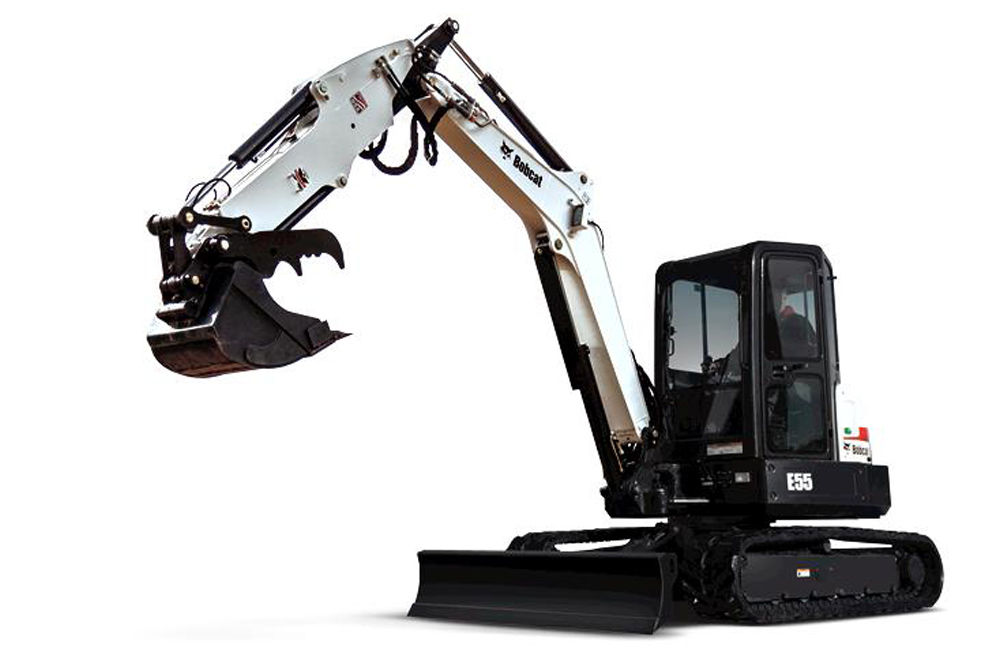

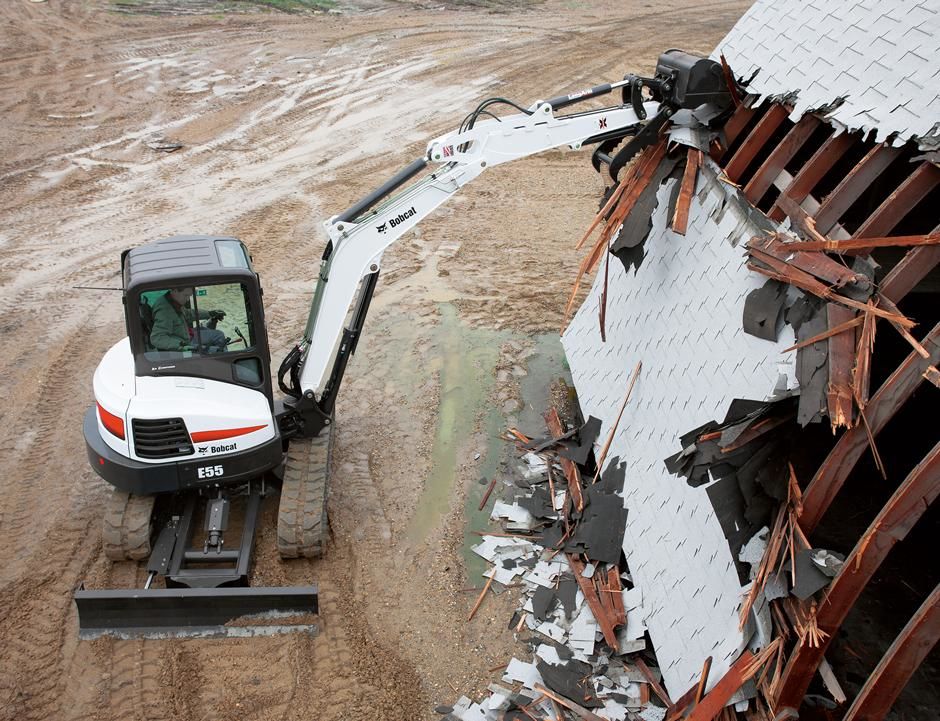

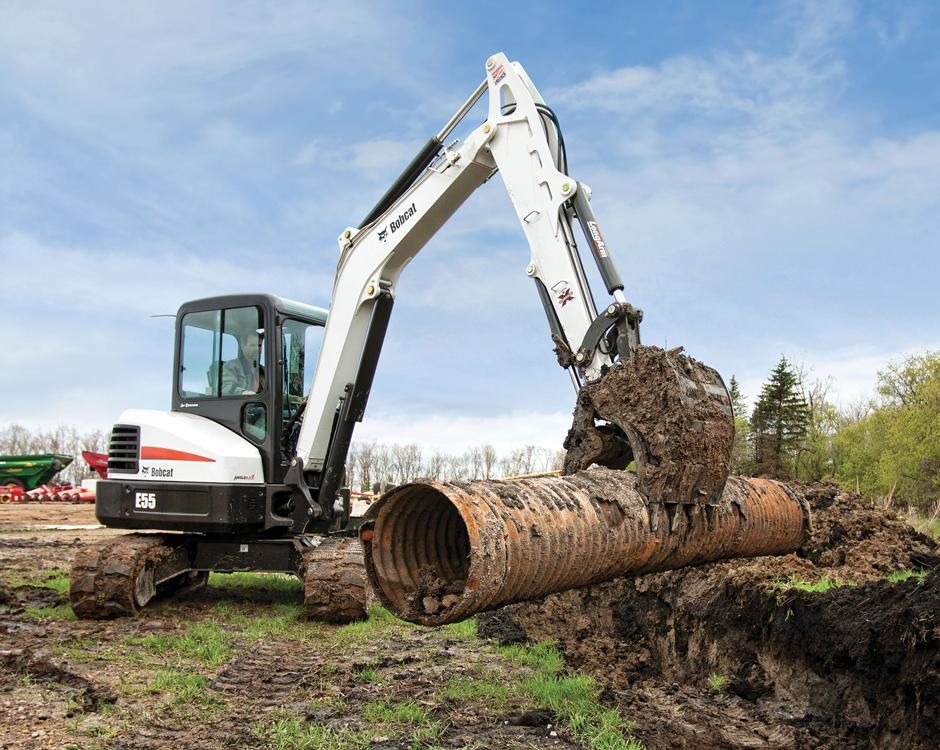

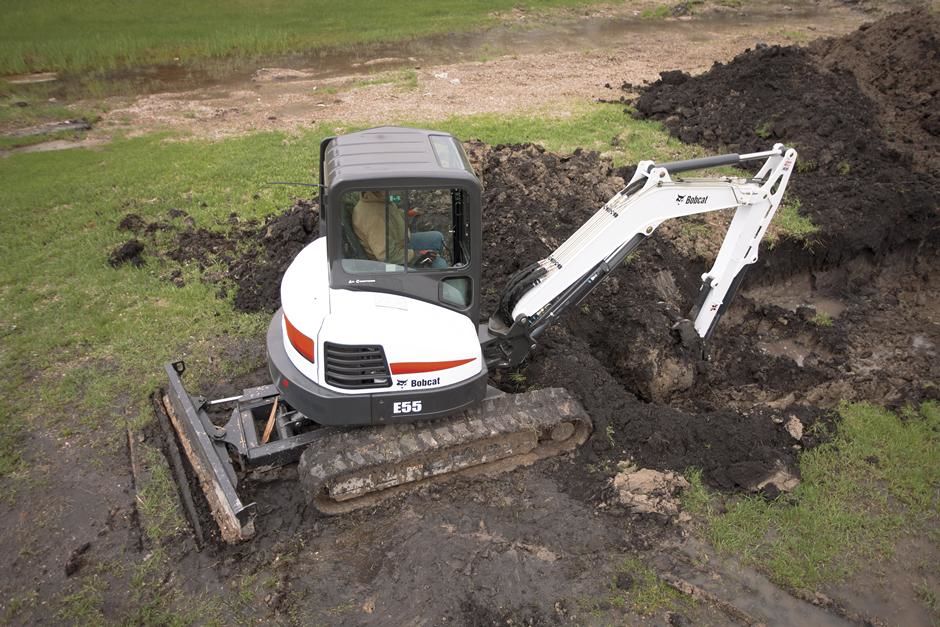

The Bobcat® E55 compact excavator (mini excavator) is a conventional tail swing model with exceptional performance, dig depth and dump height. The conventional tail swing makes it easier to move your machine through tight spaces such as doors, gates, and onto trailers. The Tier 4-compliant E55 is available with clamp-ready extendable-arm configuration that provides additional length when fully extended. Gain ultimate reach without having to upsize the machine. An angle blade option is also available.

  • Series:M
    Tail Swing Type:Conventional
    Tail Swing Overhang:342 mm
    Weight:5585 kg
    Dig Depth:3923 mm
    Reach @ Ground Level:6083 mm
    Dump Height Clearance:4132 mm
    Width:1960 mm
    Ground Pressure:31.0 kPa
    Standard Track Width:400 mm
    Arm Breakout Force:25,580 N
    Bucket Breakout Force:39,930 N
    Rated Lift Capacity Over Blade:2268 kg
    Rated Lift Capacity Over Side:1307 kg
    Travel Speed: Low/High3.1/5.0 km/hr
    Horsepower:48.8 HP (36.4 kW)
    Engine Type:Interim Tier 4
    Fuel Tank Capacity:79.9 L
