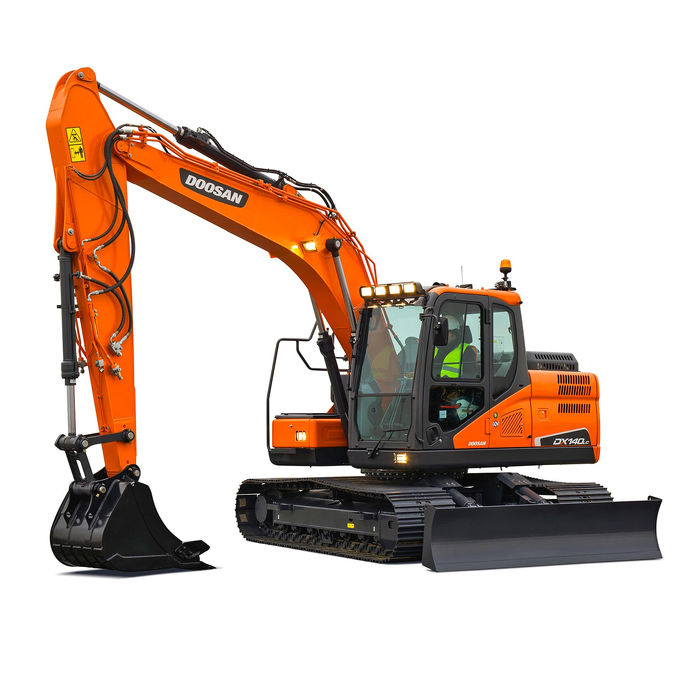

Doosan DX140LC
Doosan has developed the DX 140 LC with end-user in mined. Easy maintenance operations at long intervals increase the availability of the equipment on site.
With a focus on greater power, robustness and versatility, the DX140LC-5 is powered by the Perkins 4.5 engine, which combines reduced fuel consumption with the power and torque of larger engines with a smaller displacement.
And the new operator’s cab? It’s one of the largest in the compact radius industry. Already excelling in spaciousness and ergonomics, the DX140LC-5 cab has been further refined for outstanding operator comfort and ease of operation.
Operating weight 15,500 kg Engine Perkins 4.5 Engine power 85.9kW(117PS, 115HP) @2000rpm Main pumps max flow 2 x 114 l/m Number of cylinders 4 Travel speed 4.6/2.7 km/h Maximum traction 16.4 / 9.8 kN Buckets 0.24 – 0.76 m³ Sound level (internal / external) 73 dB(A) - 98 dB(A) Overall width 2590 mm Overall length (Std Front) 7640 mm Tail swing radius 2205 mm Bucket digging force 10.4/11.1 t (Nor./Press. Up) Arm digging force (Std Front) 6.2/6.5 t (Nor./Press. Up) Max. digging reach (Std Front) 8665 mm Max. digging depth (Std Front) 6135 mm Max. digging height (Std Front) 8745 mm
