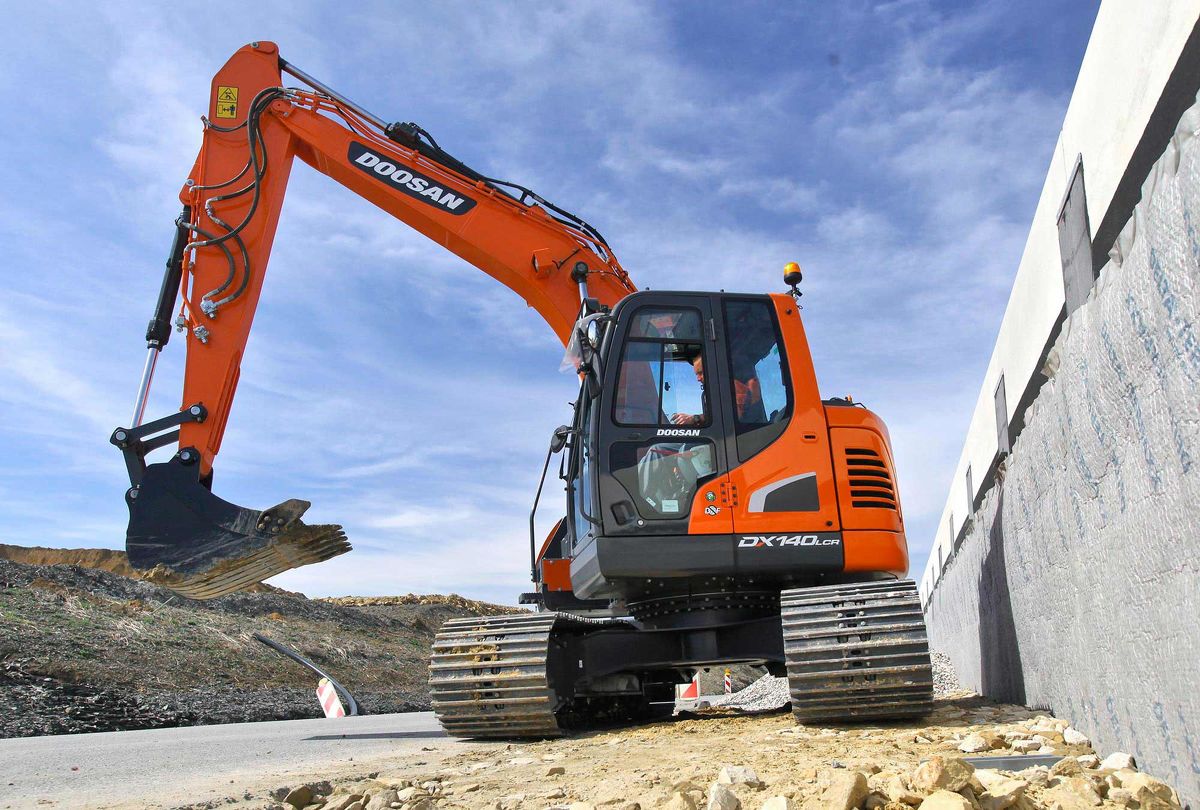

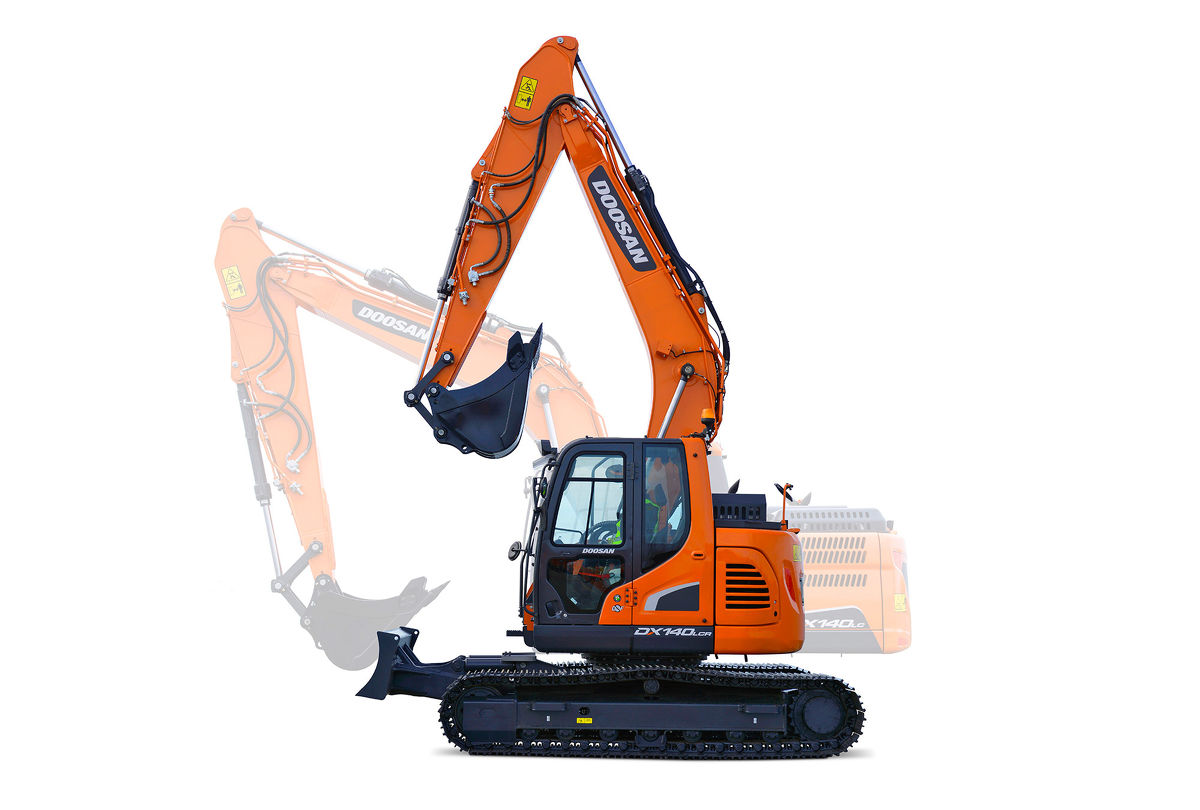

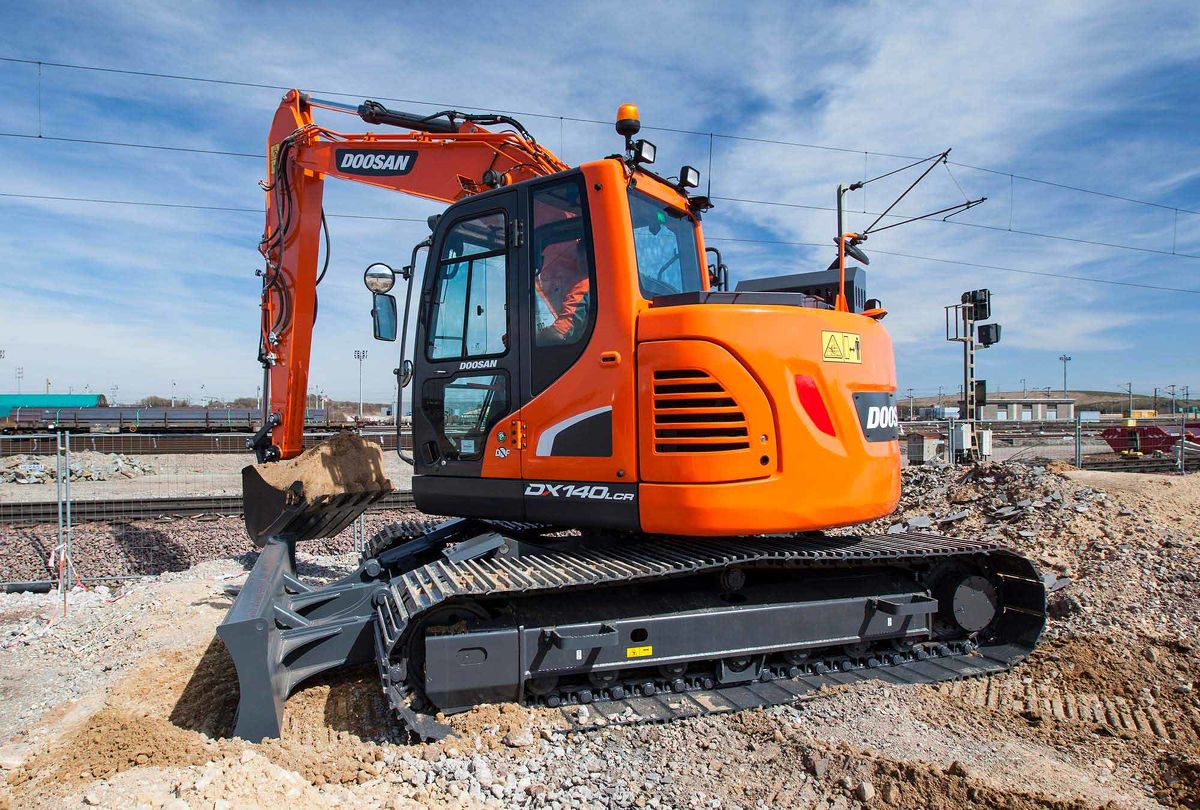

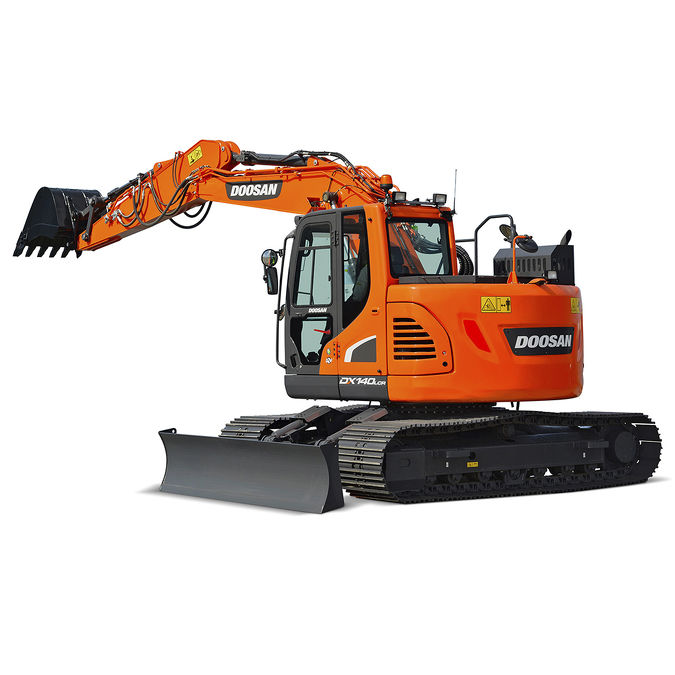

Doosan DX140LCR

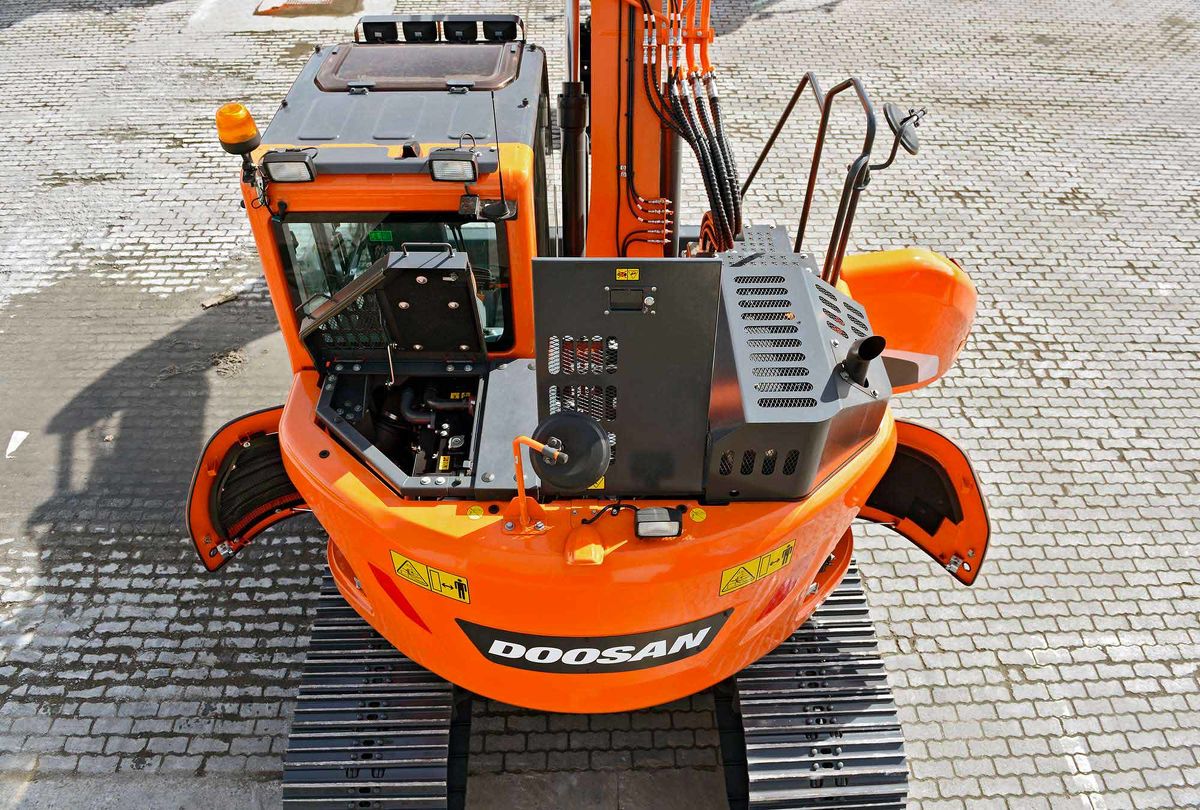

Doosan has developed the DX 140 LCR with end-user in mined. Easy maintenance operations at long intervals increase the availability of the equipment on site.

With a focus on greater power, robustness and versatility, the DX140LCR-5 is powered by the Perkins 4.5 engine, which combines reduced fuel consumption with the power and torque of larger engines with a smaller displacement.

And the new operator’s cab? It’s one of the largest in the compact radius industry. Already excelling in spaciousness and ergonomics, the DX140LCR-5 cab has been further refined for outstanding operator comfort and ease of operation.

  • Operating weight15,870 kg
    EnginePerkins 4.5
    Engine power85.9kW(117PS, 115HP) @2000rpm
    Main pumps max flow2 x 114 l/m
    Number of cylinders4
    Travel speed4.6/2.7 km/h
    Maximum traction16.4 / 9.8 kN
    Buckets0.24 – 0.76 m³
    Sound level (internal / external)73 dB(A) - 98 dB(A)
    Overall width2590 mm
    Overall height (Std Front)2765 mm
    Overall length (Std Front)7360 mm
    Tail swing radius2205 mm
    Bucket digging force10.4/11.1 t (Nor./Press. Up)
    Arm digging force (Std Front)6.2/6.5 t (Nor./Press. Up)
    Max. digging reach (Std Front)8285 mm
    Max. digging depth (Std Front)5458 mm
    Max. digging height (Std Front)9265 mm
