Doosan DX235LCR

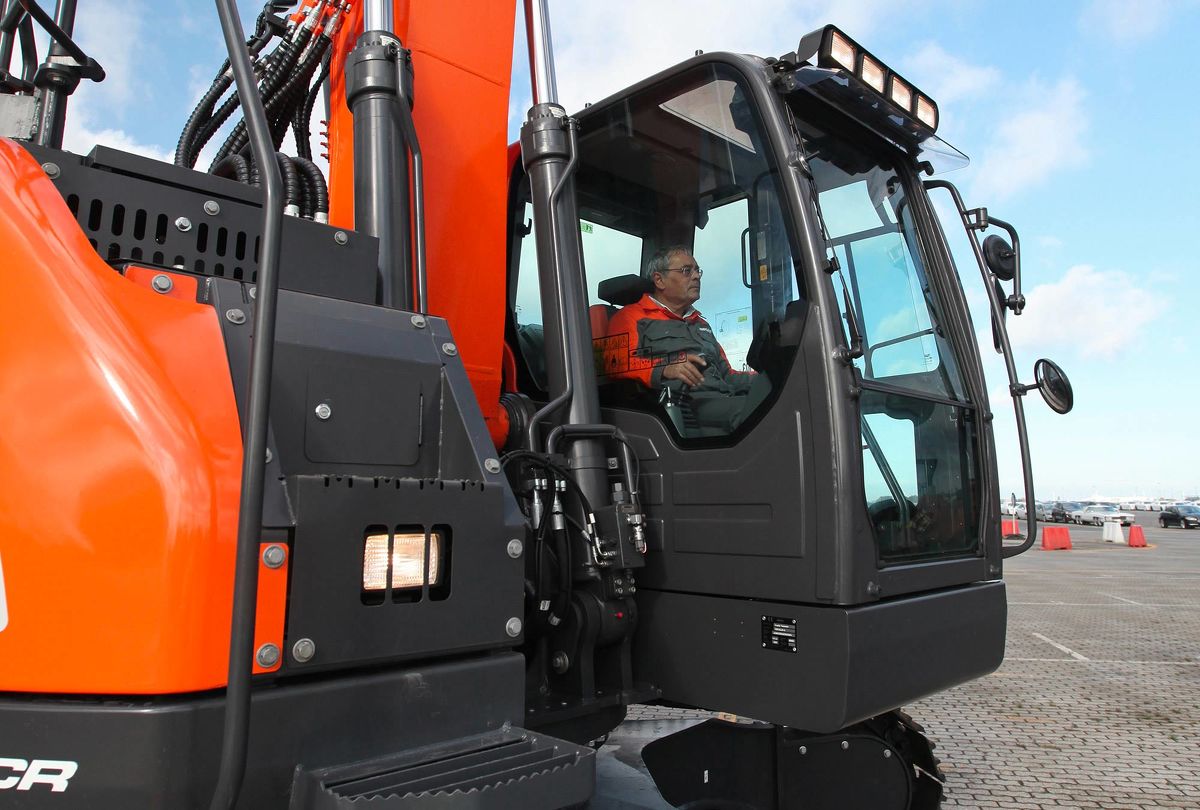

The DX235LCR-5 is designed to provide you with the best possible working conditions. The pressurised cab is ISO certified for your safety. Its spacious interior offers a fully adjustable, heated air suspension seat. Comfortably seated, you have easy access to several storage compartments and a clear all-round view of the worksite. Noise and vibration levels have been reduced, while air conditioning and automatic climate control allow you to keep working for hours on end without feeling tired.

  • Operating weight24,320 kg
    EngineDL06
    Engine power141 kW (189 HP) @ 1900 rpm (SAE J1995)
    Main pumps max flow2 x 222 l/m
    Number of cylinders6
    Travel speed3.2 / 5.8 km/h
    Maximum traction29.2 / 15.8 ton
    Buckets0.51 – 1.32 m³
    Sound level (internal / external)74 dB(A) - 103 dB(A)
    Overall height (Std Front)2980 mm
    Overall length (Std Front)8975 mm
    Tail swing radius2310 mm
    Bucket digging force16.0 t
    Arm digging force (Std Front)11.1 t
    Max. digging reach (Std Front)9820 mm
    Max. digging depth (Std Front)6670 mm
    Max. digging height (Std Front)10795 mm
