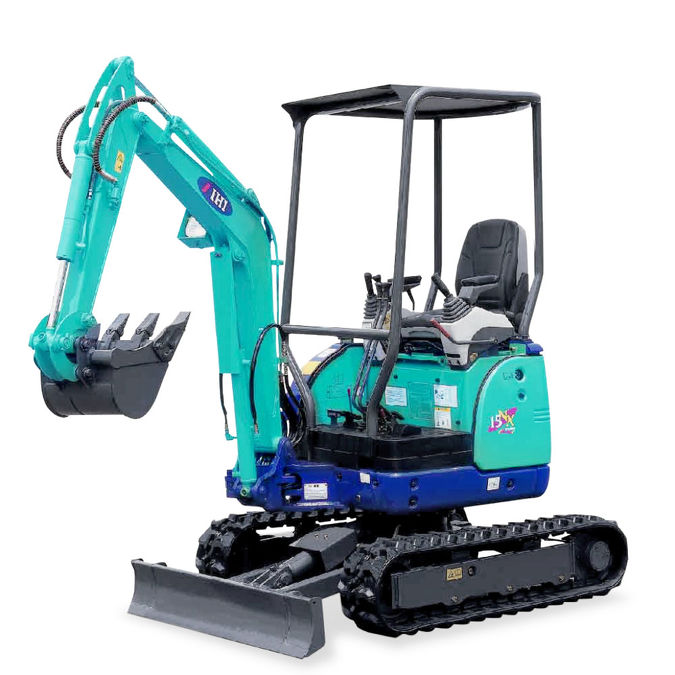

Ideal for a wide variety of projects, from general construction and roadworks, to piping and landscaping.

Experience the stable performance made possible by the wide track and zero swing.

Powerful and speed multitasking is afforded by IHI unique 3-pump hydraulic system.

  • STD Bucket Capacity0.044m3
    STD Bucket Width450mm
    Operating Weight1190kg
    Machine Weight1190kg
    Swing Speed9.5rpm
    Travel Speed (Low)/(High)2.1km/h / 4.0km/h
    Ground Pressure25.8kPa
    Max Bucket Digging Force16.4kN
    Engine ModelYanmar 3TNV70
    Rated Output10.5kW
    Fuel Tank Capacity10L
    Boom Swing SystemBoom offset with hydraulic cylinder
    Hydraulic System Pressure20.6MPa
    Hydraulic Pump Flow18L/min x2 + 12L/min
    Max Digging Radius3760mm
    Max Digging Depth2100mm
    Max Digging Height3610mm
    Max Dumping Height2560mm
    Maximum Vertical Digging Depth1770mm
    Minimum Front Turning Radius1490mm
    Dozer Blade Width960mm
    Dozer Blade Height235mm
    Dozer Blade Lift Above Ground275mm
    Dozer Blade Drop Below Ground310mm
