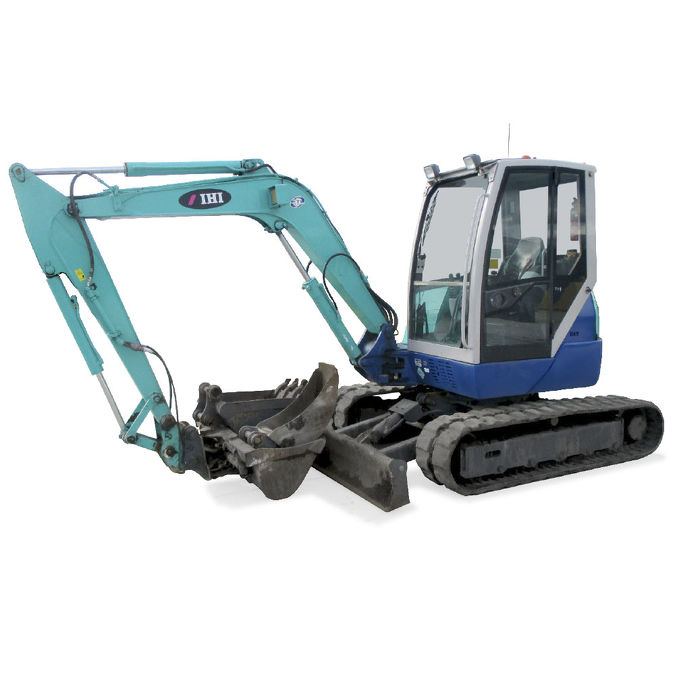

IHI 45NX

IHI 45NX

The perfect balance of class leading performance and operational comfort.

  • Water cooled diesel engine
  • Variable displacement piston pumps
  • 2-speed travel
  • Auxiliary hydraulics standard
  • Hydraulic pilot controls
  • Standard with A-F quick change valve
  • Backfill blade standard
  • 3650mm digging depth
  • Travel pressure boost system
  • STD Bucket Capacity0.15m3
    STD Bucket Width650mm
    Operating Weight4765kg
    Machine Weight4690kg
    Swing Speed8.5rpm
    Travel Speed (Low)/(High)2.1km/h / 4.0km/h
    Gradeability30
    Ground Pressure28kPa
    Max Bucket Digging Force30.4N
    Engine ModelIsuzu 4LE2
    Rated Output30.2kW
    Fuel Tank Capacity65L
    Boom Swing SystemBoom offset with hydraulic cylinder
    Hydraulic System Pressure20.6MPa
    Hydraulic Pump Flow57.2L/min x2 + 42.1L/min
    Max Digging Radius6000mm
    Max Digging Depth3650mm
    Max Digging Height5320mm
    Max Dumping Height3700mm
    Maximum Vertical Digging Depth2750mm
    Minimum Front Turning Radius2350mm
    Dozer Blade Width1950mm
    Dozer Blade Height730mm
    Dozer Blade Lift Above Ground410mm
    Dozer Blade Drop Below Ground360mm
