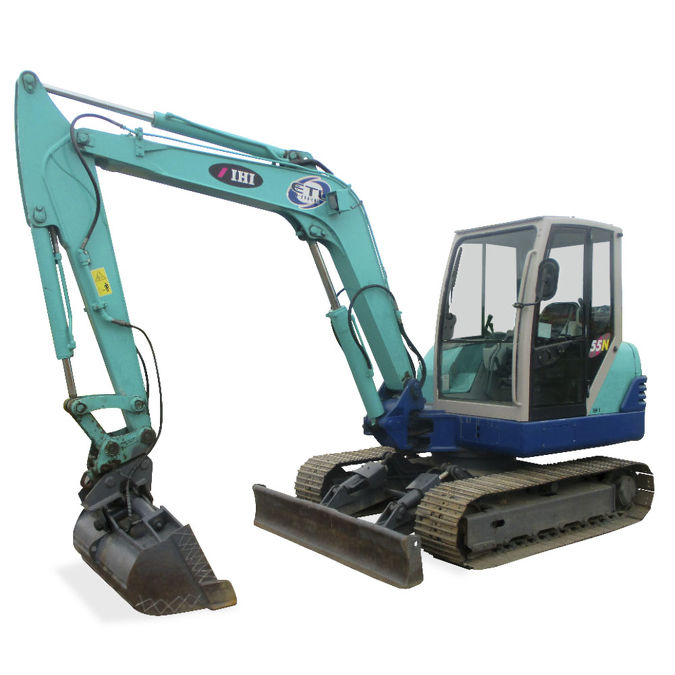

The 55N-3, a rugged, hard working mini excavator not only out performs any other excavator in it’s class but is more productive than a loader-backhoe when working in limited access areas.

  • 55.5hp water cooled diesel engine
  • Bucket breakout force of 11,071 lbs.
  • Variable displacement piston pumps
  • 2-speed travel
  • Auxiliary hydraulics standard
  • Hydraulic pilot controls
  • Standard with A-F quick change valve
  • Rubber or steel tracks
  • Standard backfill blade
  • ROPS Certified
  • STD Bucket Capacity0.18m3
    STD Bucket Width685mm
    Operating Weight5200kg
    Machine Weight3920kg
    Swing Speed9rpm
    Travel Speed (Low)/(High)2.6km/h / 4.6km/h
    Ground Pressure30.2kPa
    Max Bucket Digging Force38.3kN
    Engine ModelYanmar 4TNV94L
    Rated Output40.8Kw
    Fuel Tank Capacity75L
    Boom Swing SystemBoom offset with hydraulic cylinder
    Hydraulic System Pressure20.6MPa
    Hydraulic Pump Flow64.6L/min x2 + 46.1L/min
    Max Digging Radius6120mm
    Max Digging Depth3850mm
    Max Digging Height6220mm
    Max Dumping Height4300
    Maximum Vertical Digging Depth2950mm
    Minimum Front Turning Radius2220mm
    Width To Outside Of Tracks2000mm
    Height To Top Of Cab2500mm
    Dozer Blade Width2000mm
    Dozer Blade Height370mm
    Dozer Blade Lift Above Ground380mm
    Dozer Blade Drop Below Ground380mm
