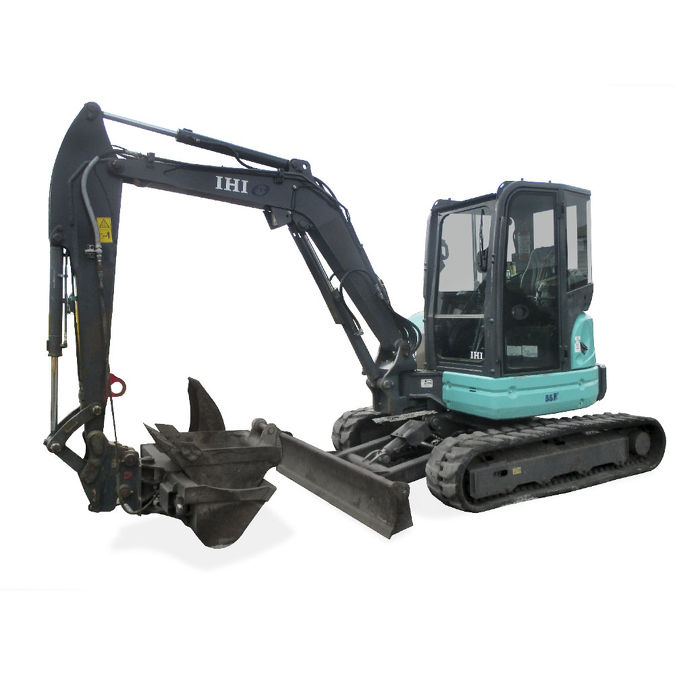

IHI 55V4

IHI 55V4

Zero Tail Swing Mini Excavator

  • Comfortable Operator Room and Easy Manipulation
  • Easily visible monitor
  • Centralized switches
  • World-Standard Safety
  • ROPS Certified
  • All-lever lock
  • Neutral engine-start
  • Auto-parking brake in swing & traction motors
  • High Power Digging and Quick Response
  • Quickly responsive 4-pump system
  • Easy Maintenance
  • Easy Fuel Refilling

  • STD Bucket Capacity0.16m3
    STD Bucket Width650mm
    Operating Weight5215kg
    Machine Weight5140kg
    Swing Speed9.3rpm
    Travel Speed (Low)/(High)2.9km/h / 4.6km/h
    Gradeability30
    Ground Pressure29kPa
    Max Bucket Digging Force31.0kN
    Engine ModelKubota V2403-DI
    Rated Output32.4kW
    Fuel Tank Capacity66L
    Boom Swing SystemBoom offset with hydraulic cylinder
    Hydraulic System Pressure24.5MPa
    Hydraulic Pump Flow60L/min x2 + 44.2L/min
    Max Digging Radius5970mm
    Max Digging Depth3590mm
    Max Digging Height5470mm
    Max Dumping Height3820mm
    Maximum Vertical Digging Depth2690mm
    Minimum Front Turning Radius2420mm
    Dozer Blade Width1990mm
    Dozer Blade Height385mm
    Dozer Blade Lift Above Ground460mm
    Dozer Blade Drop Below Ground430mm
