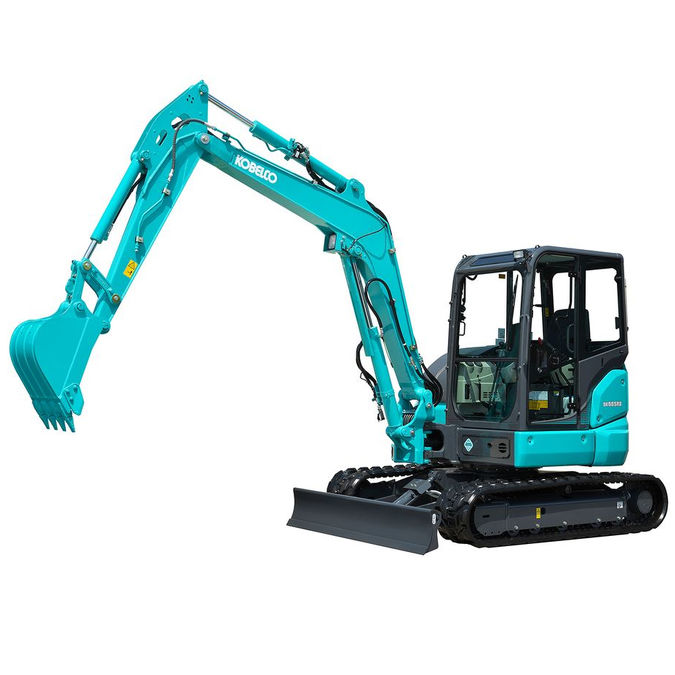

Kobelco SK55SRX-6
Kobelco has taken the next evolutionary step by packing even more digging power and practical performance features into this 5 tonne excavator while maintaining a short tail swing. The new Energy Conservation Mode saves even more fuel, and Kobelco’s proprietary iNDr Cooling System ensures quiet operation, protection from dust, and easy maintenance.
With a short tailswing, the SK55SRX is designed to fit on any jobsite, with easy transport dimensions and an overall height of 2,530 mm, it’s the perfect mix of performance and transportability. Quick N&B liens, tilt piping and hitch piping are all fitted as standard.
STD Bucket Capacity 0.16m3 STD Bucket Width 600mm Operating Weight 5160kg Swing Speed 8.8rpm Travel Speed (Low)/(High) 2.1km/h / 3.7km/h Gradeability 30 Ground Pressure 30.4kPa Max Bucket Digging Force 35.2kN Engine Model YANMAR 3TNV88-B Rated Output 28.3kW Fuel Tank Capacity 75L Boom Swing System Axial piston motor boom swing Hydraulic System Pressure 23MPa Hydraulic Pump Flow 49.9L/min x2 + 33.8L/min Max Digging Radius 6130mm Max Digging Depth 3900mm Max Digging Height 6010mm Max Dumping Height 4420mm Maximum Vertical Digging Depth 3240mm Width To Outside Of Tracks 1960mm Height To Top Of Cab 2530mm Dozer Blade Width 1960mm Dozer Blade Height 345mm Dozer Blade Lift Above Ground 465mm Dozer Blade Drop Below Ground 335mm
