Kubota U17-3

Kubota U17-3

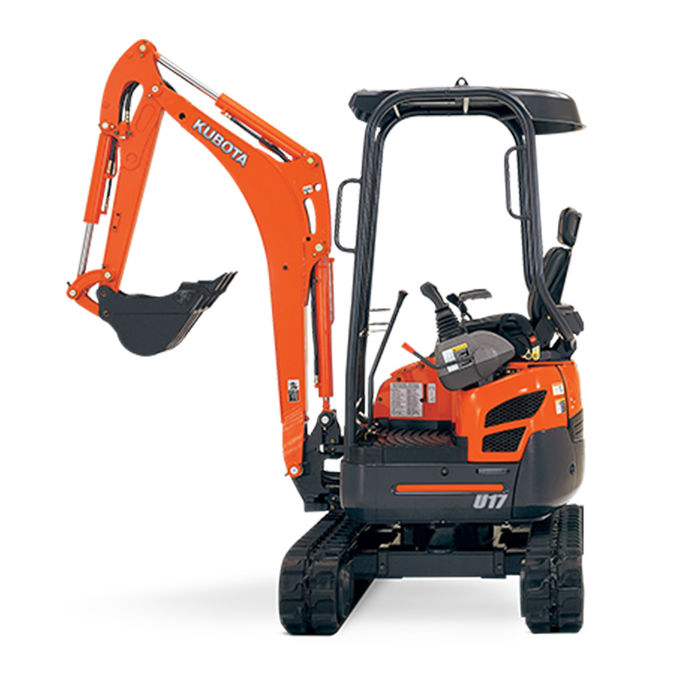

The Kubota U17-3 is the perfect excavator for tackling jobs in the tightest of spaces. Powered by Kubota 17HP engine, renowned worldwide for their outstanding reliability, the U17-3 delivers on superior maneuverability and maximum digging performance. This compact excavator delivers the power you need, the control you want and the smoothest performance when you need it most.

A compact unit that still give you power, performance and control.

  • ModelU17-3
    Type of ROPS / FOPSCanopy
    Type of tracksRubber
    Engine ModelKubota D902-E3
    Engine Output (SAEJ 1995 gross)17.0HP (12.7)kW / 2300rpm
    Engine Displacement898cc
    Overall length3545mm
    Overall height340mm
    Overall width 990mm / 1240mm
    Min. ground clearance150mm
    Hydraulic system Pump capacity17.3 x 2 / 10.4 x 1 L/min
    Hydraulic system Auxiliary hydraulic flow27.7 L/min
    Hydraulic system Max. breakout force Bucket / Arm 1550 / 8 kgf
    Travel speed Low / High 2.1 / 4 km/h
    Max. drawbar pull2207 kgf
    Tumbler distance1230mm
    Crawler length1585mm
    Shoe width230mm
    Ground contact pressure0.27 kgf/cm2
    Swing system Unit swing speed9.1rpm
    Swing system Boom swing angle Left / Right 65 / 58 Degrees
    Blade Width1240mm / 990mm
    Blade Height260mm
    Blade Max. lift above ground280mm
    Blade Max. drop below ground190mm
    Hydraulic oil (reservoir / system)13L / 23L
    Fuel reservoir19L
    Operating weight (Including operator’s weight 80 kg.)1730kg
