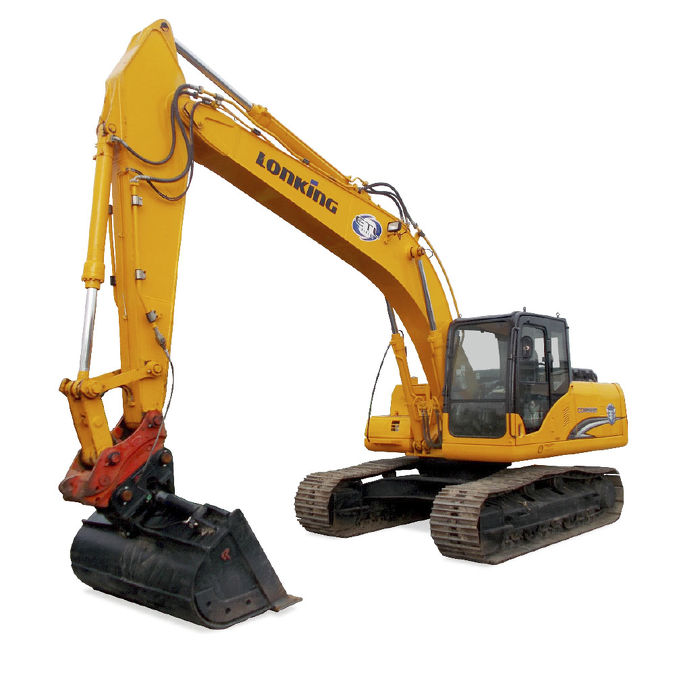

Lonking CDM6225
Construction Machinery CDM6225 features:
- Cummins TDCI 4-cylinder engine
- Air-air inter cooling system with parallel radiator
- Dual-pump double-circuit constant power control hydraulic system
- Multi-purpose true color monitor with large screen
- No frame cab glasses to enlarge the visual field
- High performance and healthy A/C allows the air circulate
- Comfortable suspension seat with hydraulic damper
- Safe and comfortable cabin with 2.7m³ inner space
- Reasonable layout of robust main frame
- X-shaped undercarriage with heavy-duty box structure
- Free maintenance track with non- lubricated pins
- Heavy-duty boom and arm with high strength low alloy structural steels
- Heavy-duty bucket with high strength and wear-resistant steels
Operating Weight 21800 kg Std. Bucket 1.1 m³ Bucket Range 0.8-1.1 m³ Ground Pressure 51 kPa Travel Speed 3.33/5.54 km/h Swing Speed 11.6 rpm Gradeability 35° (70%) Model Cummins 6BTAA5.9-C (Euro II) Rated Power 112 kW (150 hp)/1950 rpm Displacement 5.9 L Fuel Tank 380 L Max. Pressure of Implements 34.3 MPa Max. Flow of System 208×2 L/min Hydraulic Oil Tank 280 L Boom Length 5675 mm Arm Length 2920 mm Bucket Radius 1452 mm Max. Arm Digging Force (SAE/ISO) 102/105 kN Max. Bucket Digging Force (SAE/ISO) 135/158 kN
