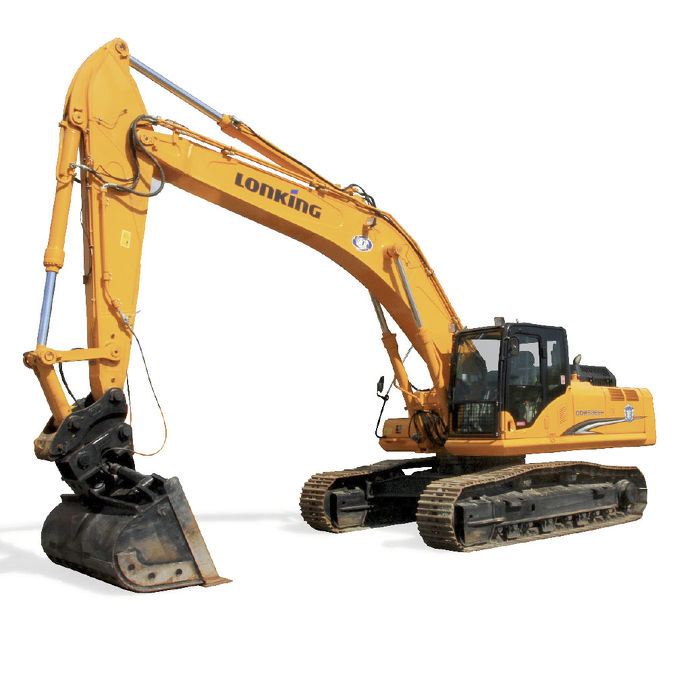

Lonking CDM6365H

Lonking CDM6365H

Construction Machinery CDM6365H features:

  • Cummins TDCI 4-cylinder engine
  • Three-stage air and fuel filtering system
  • Air-air inter cooling system with parallel radiator with automatic adjustment distribution
  • Multi-purpose true color monitor with large screen
  • No frame cab glasses to enlarge the visual field
  • High performance and healthy A/C allows the air circulate
  • Comfortable suspension seat with hydraulic damper
  • Safe and comfortable cabin with 2.7m³ inner space
  • Free maintenance track with non- lubricated pins
  • Heavy-duty boom and arm with high strength low alloy structural steels
  • Heavy-duty bucket with high strength and wear-resistant steels

  • Operating Weight34,000 kg
    Std. Bucket1.6 m³
    Bucket Range1.6-2.2 m³
    Ground Pressure68 kPa
    Travel Speed3.25/5.43 km/h
    Swing Speed9.5 rpm
    Gradeability35° (70%)
    ModelCummins 6CTAA8.3-C (Euro II)
    Rated Power197 kW (265 hp)/1950 rpm
    Displacement8.3 L
    Fuel Tank580 L
    Max. Pressure of Implements34.3 MPa
    Max. Flow of System340x2 L/min
    Hydraulic Oil Tank470 L
    Boom Length6470 mm
    Arm Length2900 mm
    Bucket Radius1670 mm
    Max. Arm Digging Force (SAE/ISO)171/178 kN
    Max. Bucket Digging Force (SAE/ISO)180/211 kN
