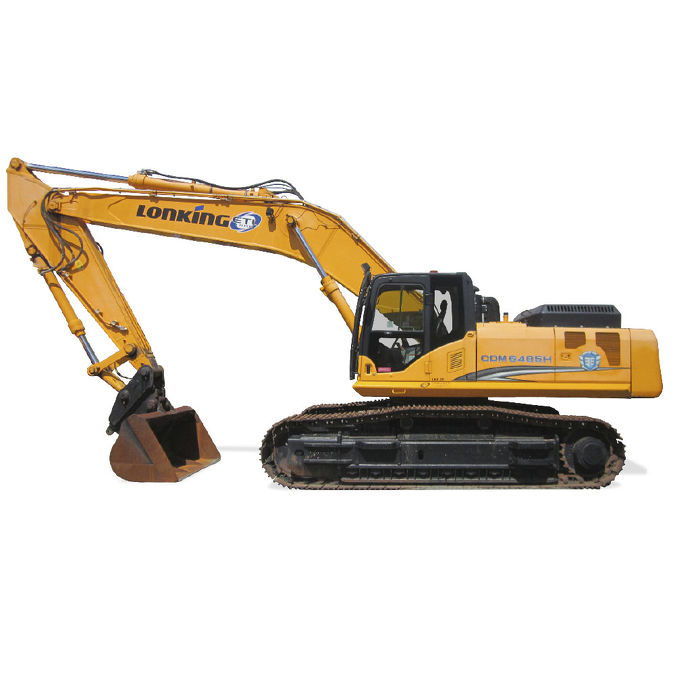

Lonking CDM6485
CDM6485 features:
- Cummins TDCI 4-cylinder engine
- Three-stage air and fuel filtering system
- Air-air inter cooling system with parallel radiator
- Dual-pump double-circuit constant power control hydraulic system
- Multi-purpose true color monitor with large screen
- No frame cab glasses to enlarge the visual field
- High performance and healthy A/C allows the air circulate
- Comfortable suspension seat with hydraulic damper
- Safe and comfortable cabin with 2.7m³ inner space
- X-shaped undercarriage with heavy-duty box structure
- Free maintenance track with non- lubricated pins
- Heavy-duty boom and arm with high strength low alloy structural steels
- Heavy-duty bucket with high strength and wear-resistant steels
Operating Weight 48200 kg Std. Bucket 2.2 m³ Bucket Range 2.2-2.5 m³ Ground Pressure 83 kPa Travel Speed 3.3/5.32 km/h Swing Speed 9.5 rpm Gradeability 35° (70%) Model Cummins QSM11 (Euro IIIA) Rated Power 269 kW(360 hp)/1850 rpm Displacement 11.04 L Fuel Tank 655 L Max. Pressure of Implements 35.3 MPa Max. Flow of System 370x2 L/min Hydraulic Oil Tank 480 L Boom Length 7060 mm Arm Length 3380 mm Bucket Radius 1800 mm Max. Arm Digging Force (SAE/ISO) 214/218 kN Max. Bucket Digging Force (SAE/ISO) 256/282 kN
