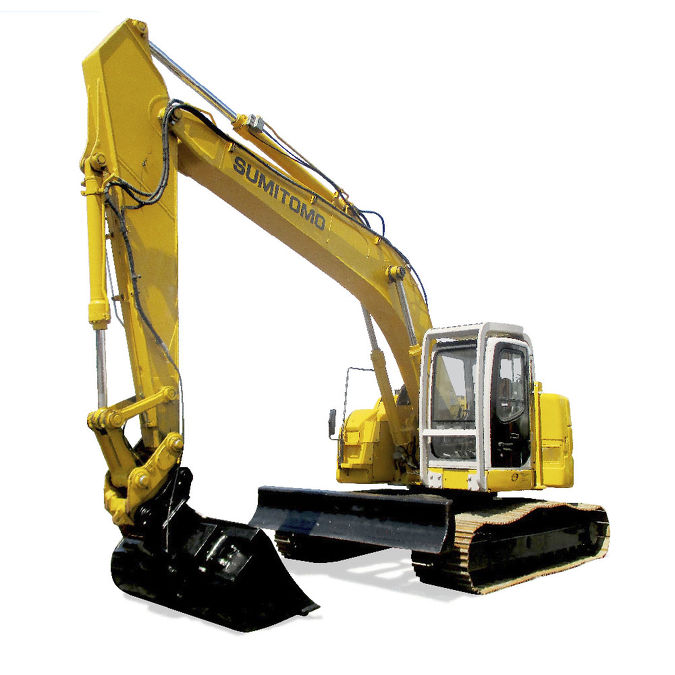

Sumitomo SH225X-3
Improvements to precision maneuverability
Precision maneuverability that functions exactly as the operator intends
has been made possible through the employment of a new type of
rotational bearing.
Rotational ABS
A rotation shock-absorber device has been installed to soften jolts that
occur when the vehicle halts rotation. This is particularly useful for
pinpointing position, and preventing spillages during manual operation.
Employment of speed assisted mechanics
Through employing an oil return system in the arm and boom,
speed assisted operations for digging, as well as fuel consumption,
have been improved.
Operation mode-change switch
Easily switch between
N Mode, which maximizes operational
capacity, and E Mode, which prioritizes
fuel economy, as required.
Arm Length 3.00 m Bucket Capacity (ISO heaped) 0.80 m³ Std. Operating Weight 24,000 kg Make & Model ISUZU AI-4HK1X Rated Output 114.4 kW/1 800min⁻¹ Displacement 5193 ml(cc) Main Pump 2 variable displacement axial piston pumps with regulating system Max. Pressure 34.3 Mpa (With Auto Power Boost) 37.3 Mpa Travel Motor Variable Displacement Axial Piston Motor Parking Break Type Mechanical Disc Brake Swing Motor Fixed Displacement Axial Piston Motor Travel Speed 5.0/3.1 km/h Drawbar Pull 187 kN Grade Ability 70% <35°> Ground Pressure 51 kPa Swing Speed 10.6 min⁻¹ Bucket 130 kN /With Power Boost 141 kN Arm 95 kN /With Power Boost 104 kN Fuel Tank 265 L Hydraulic Fluid Tank 205 L
