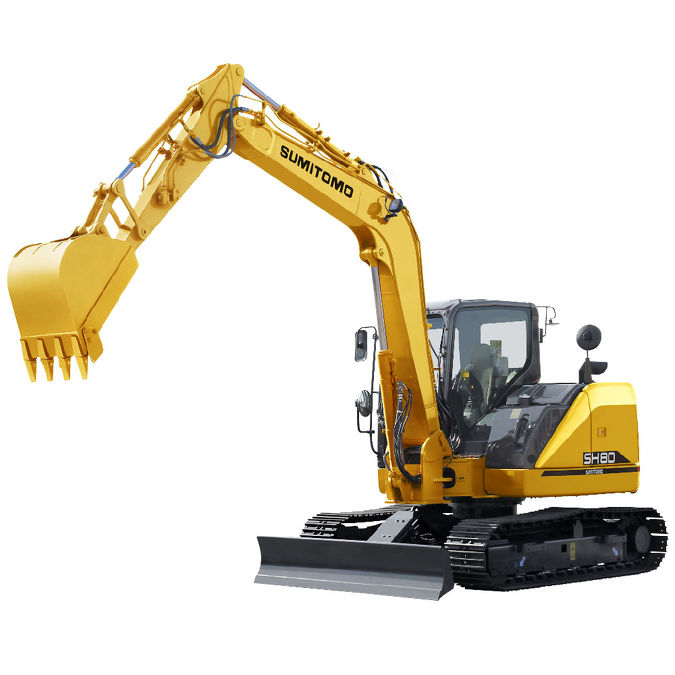

Sumitomo SH80
- Because of compact-swing and swing-boom design, an operator can concentrate on the work at hand.
The swing-boom can be positioned anywhere within a 130 degree arc.
These design not only provides greater versatility and capability to work within confined areas,
but also achieve more excellent stability in digging and driving. - Rotational ABS - A rotation shock-absorber device has been installed to soften jolts that
occur when the vehicle halts rotation. This is particularly useful for
pinpointing position, and preventing spillages during manual operation. - Employment of speed assisted mechanics - Through employing an oil return system in the arm and boom,
speed assisted operations for digging, as well as fuel consumption,
have been improved.
Boom Length 3500 cm Arm Length 1.71 m Bucket Capacity (ISO heaped) 0.28 m3 Std. Operating Weight 8,430 kg Make & Model ISUZU AU-4LE2X Rated Output 40.0 kW / 2000 min-1 Displacement 2179 ml(cc) Main Pump 2 variable displacement axial piston pumps Max. Pressure 29.4 Mpa Travel Motor Variable displacement axial piston motor Parking Break Type Mechanical disc brake Swing Motor Fixed Displacement Axial Piston Motor Travel Speed 5.1/3.3 km/h Drawbar Pull 59.2 kN (6,037 kgf) Grade Ability 70% <35°> Ground Pressure 38 kPa Swing Speed 9.5min-1 Bucket 56.9 kN Arm 38.3 kN Size (Width x Height) 2,320 mm x 450mm Lift Above Ground 415 mm Drop Below Ground 205mm Fuel Tank 100 L Hydraulic Fluid Tank 97.3 L
