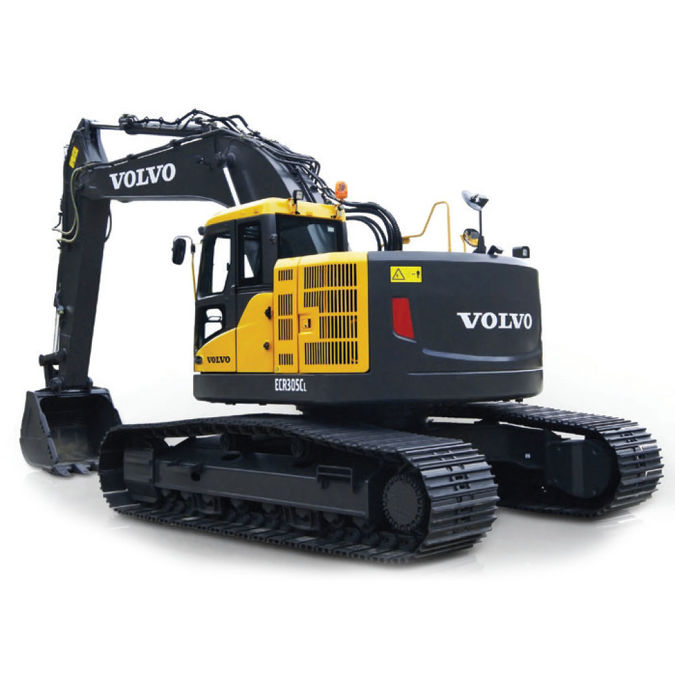

Volvo ECR305CL
More Safety
- Anti-slip, punched steel steps/platforms: superior grip and safety.
- Cab door slides neatly along the cab, staying
within the track width.
More Quality
- Volvo durability built in forged steel top rollers,
strengthened track guard, greased/sealed track link. - Strong undercarriage frame endures daily abuse.
More Innovation.
- Short swing radius: work in confined areas or one lane of traffic.
- Excellent centre of gravity for balance: including on slopes.
- Advanced hydraulic system: efficient, smooth control.
- Industry leading fuel fuel efficiency.
- Rounded cab shape: roomy, optimized design stays inside the
swing radius.
Engine Model Volvo D7D EAE3 No. of Cylinders 6 Max. Power At 1800 rpm Net Power 143 kW / 192 hp Max. Torque at 1,350 rpm 965 Nm Displacement 7.1 L Bore 108 mm Stroke 130 mm Voltage 24 V Batteries 2 x 12 V Battery Capacity 150 Ah Alternator 28 V / 80 A Fuel Tank 390 L Engine Oil 30 L Hydraulic Tank 150 L Engine Coolant 35 L Swing Speed 10.8 rpm Max. Drawbar Pull 260 kN Travel Speed 3.0 / 4.5 km/h Gradeability 35° (70%)
