VIFT MJ20 Forklift

VIFT MJ20 Forklift

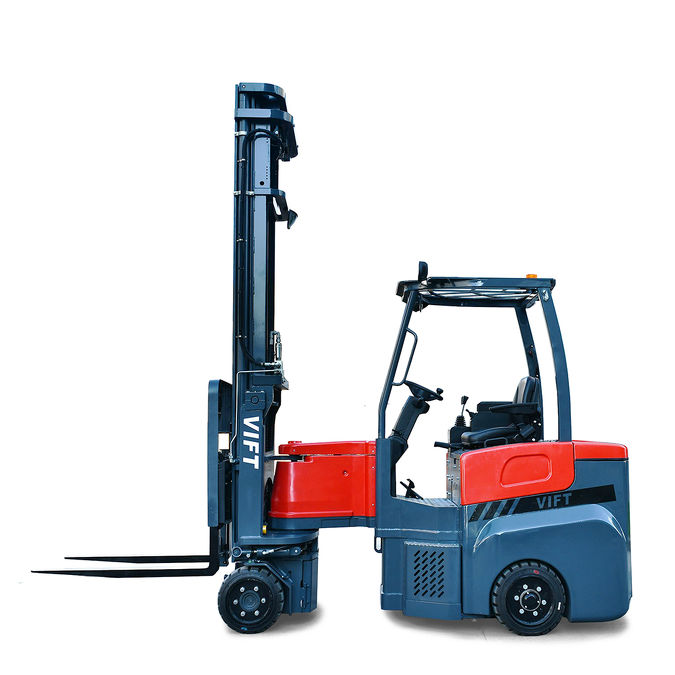

The VIFT MJ20 Articulated Forklift Truck is a narrow aisle forklift designed to work in the narrowest aisles, the highest racking bays and the most demanding multi-shift operations.

  • Power TypeBattery
    Rated Capacity2000kg
    Load Center600mm
    Front Overhang320mm
    Wheelbase1759mm
    Service Weight7100kg
    Wheel TypeSolid Tyre
    Load Wheel457x178
    Drive Wheel415x178
    Number of Wheels, Front/Rear2/2
    Wheel Tread, Drive Side800mm
    Wheel Tread, Load Side1270mm
    Mast Tilt Range, Forward/Backwards1/3 Degrees
    Lift Height3300mm
    Overhead Guard Height2255mm
    Seat Height1230mm
    Overall Height3870mm
    Length to Fork Face2800mm
    Overall Width980/1450mm
    Fork Size1070/122/40
    Fork Carriage Width900mm
    Forks Outside Width480~890mm
    Side Shifting Distance100mm
    Turning Radius2300mm
    Battery Voltage / Capacity48V / 900A
    Battery Weight1410kg
    Steering SystemHydraulic
    Driving Speed (Loaded/Unloaded)12/13kmh
    Max. Gradeability (Loaded/Unloaded)12/15 Degrees
