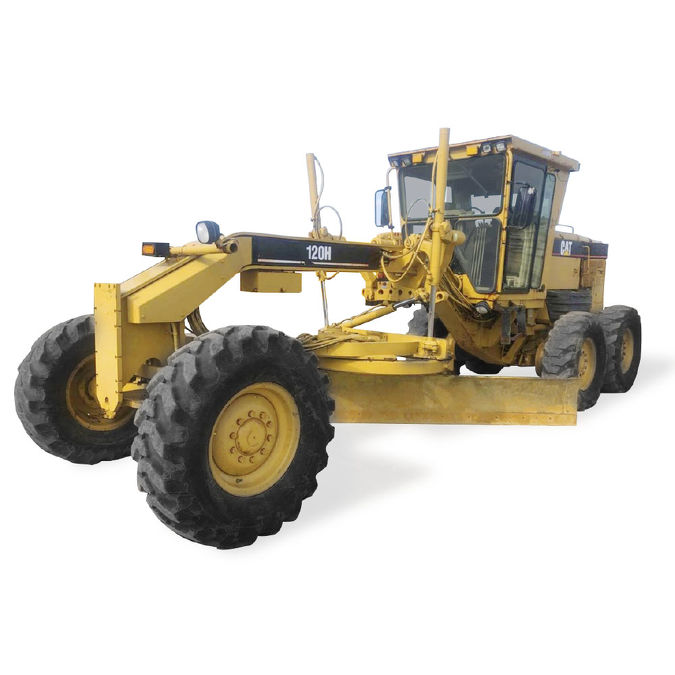

CAT 120H

CAT 120H

The 120H blends productivity and durability to give you the best return on your investment

  • Power Train - Using advanced engine technology, the
    Cat 3116 delivers exceptional lugging
    performance, fuel efficiency and engine
    power management. The power shift
    transmission features smooth, on-the-go
    shifting and electronic overspeed
    protection. To increase productivity, the
    direct drive transmission has eight
    forward speeds and six reverse speeds.
  • Hydraulics - The load-sensing hydraulic system
    lowers power consumption and system
    heat. The control valves provide low
    lever effort, balanced flow and
    consistent implement control.
  • Drawbar, Circle & Moldboard - The blade linkage design enhances
    moldboard positioning. A long wheel
    base allows the operator to obtain an
    aggressive moldboard angle for better
    material movement. The rugged
    construction of the drawbar, circle and
    moldboard, and use of replaceable wear
    inserts provide durability and minimize
    maintenance costs.
  • Operator’s Station - Well-positioned blade linkage, a tapered
    engine hood and optional ROPS cab
    with large windows ensure a clear view
    in all directions. A roomy operator’s
    station, low-effort controls and optional
    low sound level cab creates a more
    productive work environment.

  • Engine ModelCAT 3116 Turbocharged And Aftercooled Diesel Engine With Engine Power Management
    Gears (4-8)104 kW/140 hp
    Gears (1-3)93 kW/125 hp
    Blade Width3658 mm
    Operating Weight Total (Approx.)12 466 kg
    Peak Torque (Net) At 1400 rpm650 Nm
    Torque Rise30%
    Displacement6.6 L
    Bore105 mm
    Stroke127 mm
    Fuel Tank284 L
    Hydraulic Tank38 L
    Moldboard Length3658 mm
