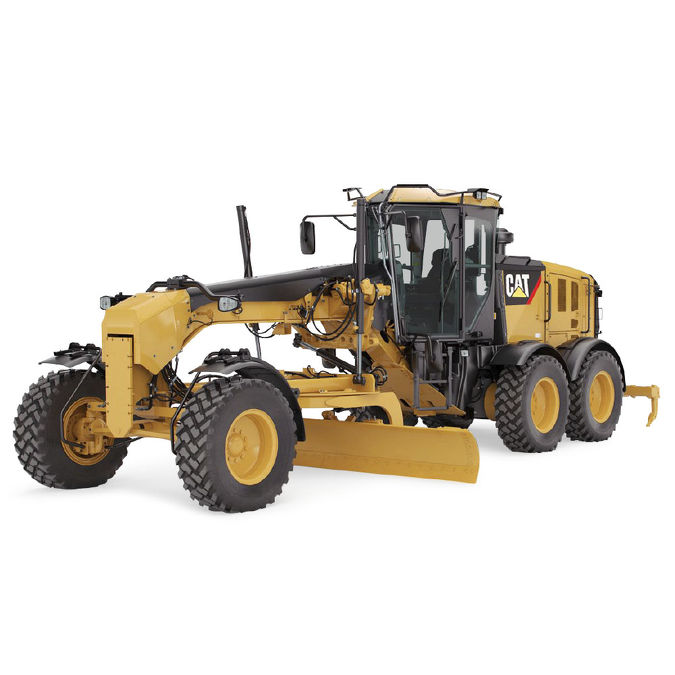

CAT 140M

CAT 140M

  • Prefer a motor grader with steering wheel and levers? The 140 uses Caterpillar’s 45 years of lever and steering wheel controls design experience to provide you with the control option you prefer.
  • Save up to 40 percent in material with the Cat GRADE Cross Slope feature. Monitor Cross Slope information from the machine display.
  • Optimized machine balance ensures maximum drawbar power to the ground.
  • Don’t let the snow stop you from working. The all-wheel drive (AWD) option assists with traction and maneuvering the machine.
  • Each machine is equipped with the Cat C9.3 engine for power and reliability.
  • Save up to 10 percent on fuel consumption with ECO Mode.
  • For your fine grade applications, the hydraulic system provides multifunction capability of up to seven simultaneous functions for superior performance.
  • Reduce risk of impact damage with the standard circle drive slip clutch. It protects your circle drive and teeth.

  • Engine ModelCAT C7 ACERT
    Base Power (1st Gear) - Net136 kW
    VHP Plus Range - Net136 - 174 kW
    Displacement7.2 L
    Moldboard - Width3.7 m
    Gross Vehicle Weight18,991 kg
    Bore110 mm
    Stroke 127 mm
    Torque Rise (VHP Plus)39%
    Max. Torque (VHP Plus)1159 N·m
    Speed At Rated Power2,000 rpm
    Number of Cylinders 6
    Derating Altitude3048 m
    Max. Fan Speed1,450 rpm
    Min. Fan Speed600 rpm
    Standard – Ambient Capability43° C
    High Ambient – Max. Fan Speed1,650 rpm
    High Ambient – Min. Fan Speed600 rpm
    High Ambient Capability 50° C
