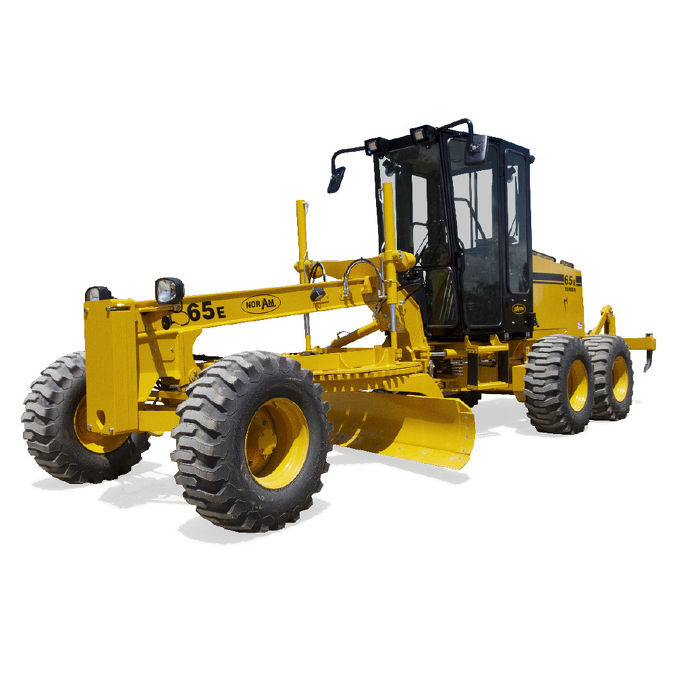

Noram 65E

Noram 65E

The NorAm 65E offers a ton of Big Grader features. NorAm engineers have designed a workhorse machine in a compact frame tailored for a highly demanding industry.

Pefect for:

  • Rough Cutting
  • Mixing
  • Spreading
  • Fine Grading

  • Operating Weight Front2,140 kg
    Operating Weight Rear5,475 kg
    Operating Weight Total7,615 kg
    Engine ModelCummins QSF3.8
    Engine Type4 Cylinder Turbo Diesel
    Rated Power120 HP
    EmissionsTier 4 Final
    Brakes TypeHydraulic power brakes
    Brakes TypeIndependent tandem by tandem system
    Service Brakes4 Wheel, wet disc & self adjusting
    Parking BrakesMechanical
    Front Axle Clearance516 mm
    Rear AxleTorque proportioning differential
    TransmissionFull powershift with torque converter
    Gears6 forward
    Top Speed38.4 km/h
    Shift ControlElectronic
    Operations MonitorLCD Screen
    ShiftingShift inhibit system
    Mouldboard Length3,050 mm
    Mouldboard Height533 mm
    Mouldboard TypeRollaway blade with involute curve
    Mouldboard Cutting EdgesReplaceable
    Mouldboard End BitsReplaceable
    Circle Type1,339mm gear driven
    Circle SupportA frame
    Circle Guides4 with wear plates
    Circle ShimsAdjustable
    Circle Rotation360°
    Circle Side ShiftHydraulic circle
    Length6,569 mm
    Width2,324 mm
    Height2,997 mm
    Wheelbase4,721 mm
    Tyres15.00 x 19.5 (8PR) G2
