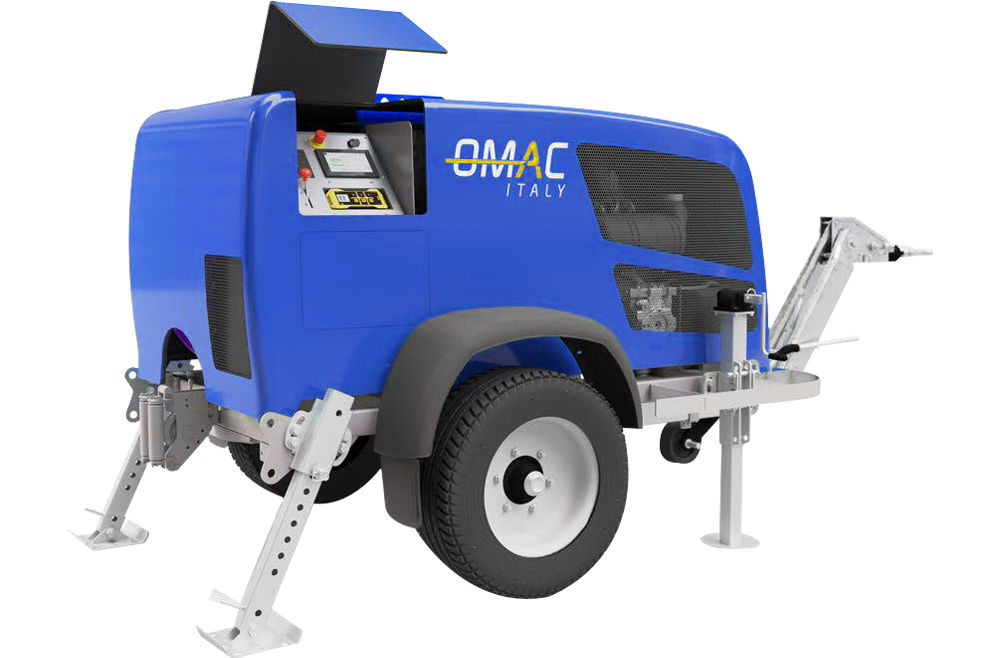

OMAC UP30 Hydraulic Puller
Hydraulic puller fit to pull one rope in laying underground power and fibre optic cables. One hydraulic circuit allows to continuously vary the speed in both directions.
Max rope diameter 12 mm Dimensions LxWxH 3,60x1,65x1,60 m Weight (without rope) 1380 kg Fuel Type Diesel Power 25,5 hp / 18,8 kW Cooling Water Starting 12 V Max Pull 30 kN Speed at Max Pull 16 m/min Max Speed 65 m/min Pull at Max Speed 10 kN Reel Capacity with 12mm Wire 700 m Reel Capacity with 10mm Wire 1000 m Reel Capacity with 8mm Wire 1300 m
