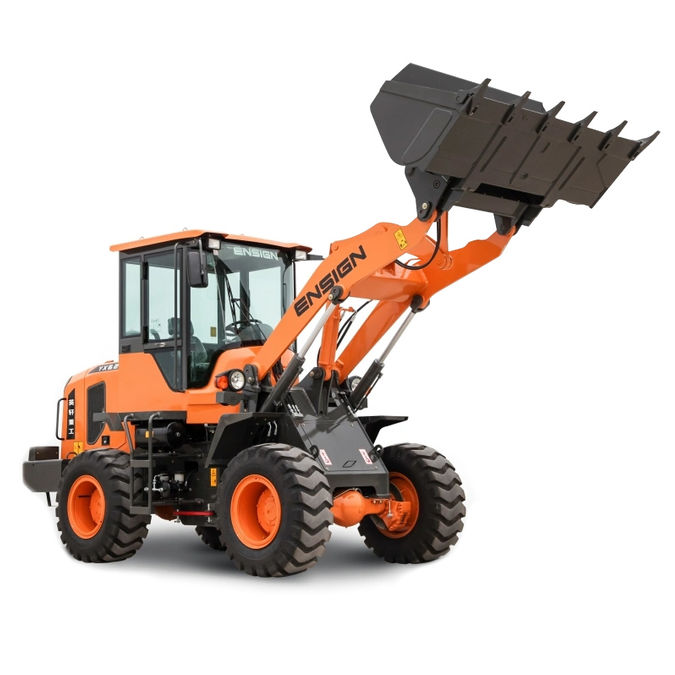

Ensign YX620

Ensign YX620

  • Engine ModelYC4D80-T20
    Engine TypeVertical, in-line, water cooling four-stroke
    Rated Power58kW
    Steering TypeLoad sensing hydraulic
    Oil Pump TypeGear pump
    Oil Pump Displacement50ccr
    Working Pressure16Mpa
    Fuel Tank140L
    Engine Oil13L
    Transmission Oil45L
    Hydraulic Oil75L
    Gear Oil (per axle)16L
    Antifreeze Liquid24L
    Torque Converter TypeSingle stage, 3 elements
    Transmission TypeFixed shaft, power shift
    Gears2 forward, 2 reverse
    Main Drive TypeSpiral bevel gear, first reduction
    Hub Reduction TypePlanetary
    Drive AxleDry type axle
    Service BrakeAir-over-oil caliper disc
    Parking BrakeFlexible shaft internal
    Hydraulic System Pressure17.5Mpa
    Control TypeMechanical
    Oil Pump TypeGear Pump
    Bucket Capacity1M³
    Rated Load1800kg
    Overall Operating Weight6100kg
    Max. Traction Force^50kN
    Max. Breakout Force^58kN
    Min. Turning Radius (outer side of the bucket)5080mm
    Min. Turning Radius (outer side of the tire)4650mm
    Total Cycle Time (lift, dump & lower)<9.5s
    Dump Height/Dump Angle2510mm/44°
    Dump Distance/Dump Angle950mm/44°
    Min. Ground Clearance300mm
    Wheel Base2260mm
    Wheel Tread1630mm
    Departure angle30°
    Steering Angle (left & right)35°
    Overall Dimension (standard configuration)5790mm x 2150mm x 2980mm
