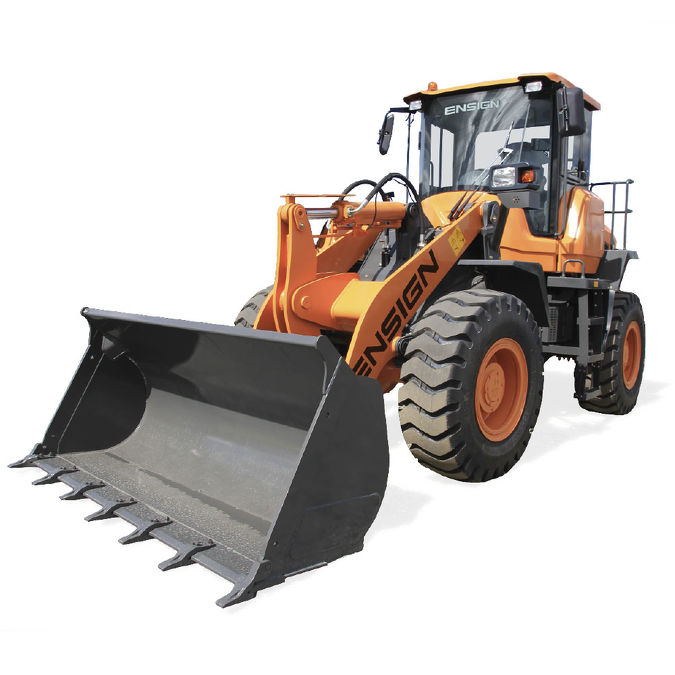

Ensign YX638

Ensign YX638

  • Engine ModelCummins 6BT5.9-C130
    Engine Type6-Cylinder in-line, Turbo charged
    Rated Power97kW
    Steering TypeLoad sensing hydraulic
    Oil Pump TypeGear pump
    Oil Pump Displacement63ccr
    Working Pressure15Mpa
    Fuel Tank173L
    Engine Oil18L
    Transmission Oil59L
    Hydraulic Oil90L
    Gear Oil (per axle)17L
    Antifreeze Liquid40L
    Torque Converter TypeSingle stage, 3 elements
    Transmission TypeFixed shaft, power shift
    Gears4 forward, 3 reverse
    Main Drive TypeSpiral bevel gear, first reduction
    Hub Reduction TypePlanetary
    Drive AxleDry type axle
    Tires17.5-25
    Service BrakeAir-over-oil caliper disc
    Parking BrakeDrum brake
    Hydraulic System Pressure16Mpa
    Control TypePilot control
    Oil Pump TypeGear Pump
    Bucket Capacity1.8M³
    Rated Load3000kg
    Overall Operating Weight10500kg
    Max. Traction Force^105kN
    Max. Breakout Force^100kN
    Gradeability30°
    Min. Turning Radius (outer side of the bucket)5950mm
    Min. Turning Radius (outer side of the tire)5346mm
    Total Cycle Time (lift, dump & lower)<9.2s
    Dump Height/Dump Angle2960mm/45°
    Dump Distance/Dump Angle1040mm/44°
    Min. Ground Clearance371.5mm
    Wheel Base2850mm
    Wheel Tread1850mm
    Departure Angle30°
    Steering Angle (left & right)38°
    Overall Dimension (standard configuration)7008mm x 2520mm x 3277mm
