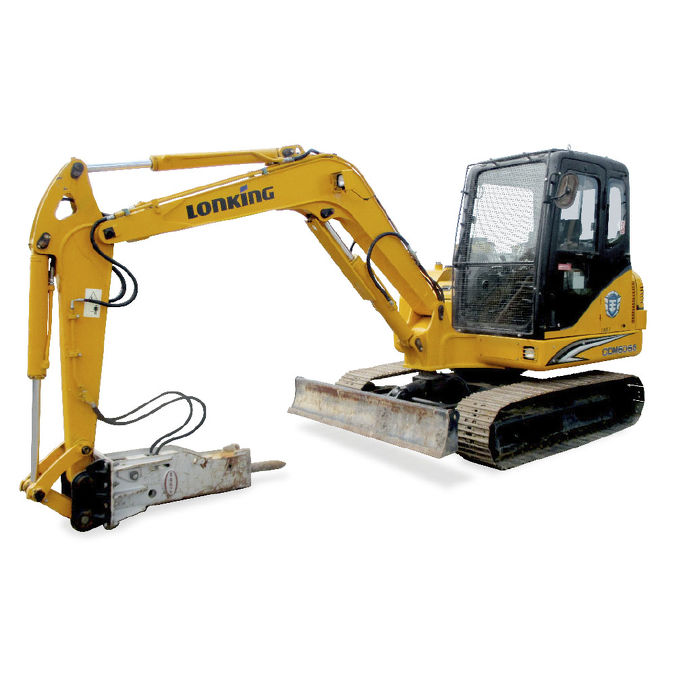

Lonking CDM6065 Rock Breaker

Lonking CDM6065 Rock Breaker

  • Yanmar TNV series engine, low noise, low emission
  • High efficiency dual air filters and fuel filters
  • Parallel radiator cooling system
  • LUDV power balanced hydraulic system with safety lock joy stick
  • Large LCD monitor provides a convenient visual operation interface
  • X-shaped undercarriage with heavy-duty box structure
  • Free maintenance track with non- lubricated pins
  • No frame cab glasses to enlarge the visual field
  • High performance and healthy A/C allows the air circulate
  • Comfortable suspension seat with hydraulic damper
  • Heavy-duty boom and arm with high strength low alloy structural steels
  • Heavy-duty bucket with high strength and wear-resistant steels
  • Specs for the rock breaker attachment are yet TBD
  • Operating Weight6065 kg
    Engine Power43.3 kW / 2400 rpm
    Travel Speed (Low/High)2.5/5.0 km/h
    Swing Speed11 rpm
    Ground Pressure32 kPa
    Maximum Arm Crowd Fore28 kN
    Maximum Bucket Digging Force40 kN
    Engine ModelYanmar 4TNV98(Euro IIIA)
    Displacement3.319 L
    Swing Device Driving TypeHydraulic Drive
    Travel Device Driving TypeHydraulic Drive
    Brake TypeHydraulic Lock
    Standard Track Shoe TypeTriple Grouser Shoes
    Track Adjustment DeviceGrease Tension
    Boom Length3000 mm
    Arm Length1550 mm
    Fuel (Diesel) 95 L
    Hydraulic Oil Tank115 L
