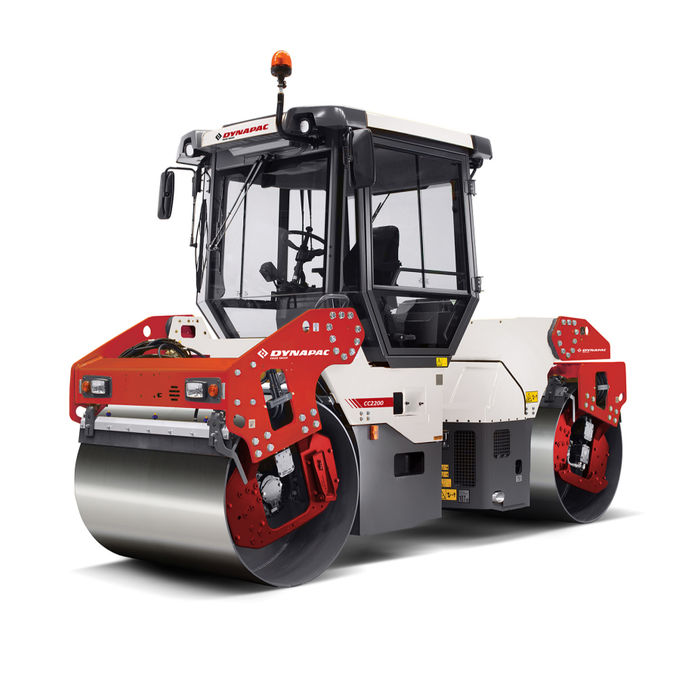

Dynapac CC2200

Dynapac CC2200

These tandem rollers are designed with efficiency in mind -
application efficiency, operator efficiency, compaction control efficiency and
service efficiency. Performance, visibility, operators comfort, compaction
control and serviceability for the new CC line will appeal to owners, operators
and service crews. The environmental benefits appeal to everyone. All models
have high frequency vibration as standard. There is a number of features to the
CC rollers to make servicing quick and easy, ensuring maximum uptime.

  • Max. operating mass9000 kg
    Operating mass (incl. Cab)7800 kg
    Module mass (front/rear)3800 kg / 3800 kg
    Speed range0 - 12 km/h
    Vertical oscillation±7°
    Max. theoretical gradeability42 %
    Centrifugal force (high/low amplitude)78 kN/ 67 kN
    Nominal amplitude (high/low)0.7 mm/ 0.2 mm
    Static linear load (front/rear)25.3/ 25.3 kg/cm
    Vibration frequency (high/low amplitude)48 Hz/ 67 Hz
    Water tank volume750 l
    EngineCummins QSB 3.3 IIIA/T3
    Rated power, SAE J199574 kW (99 hp ) @ 2,200 U/Min.
