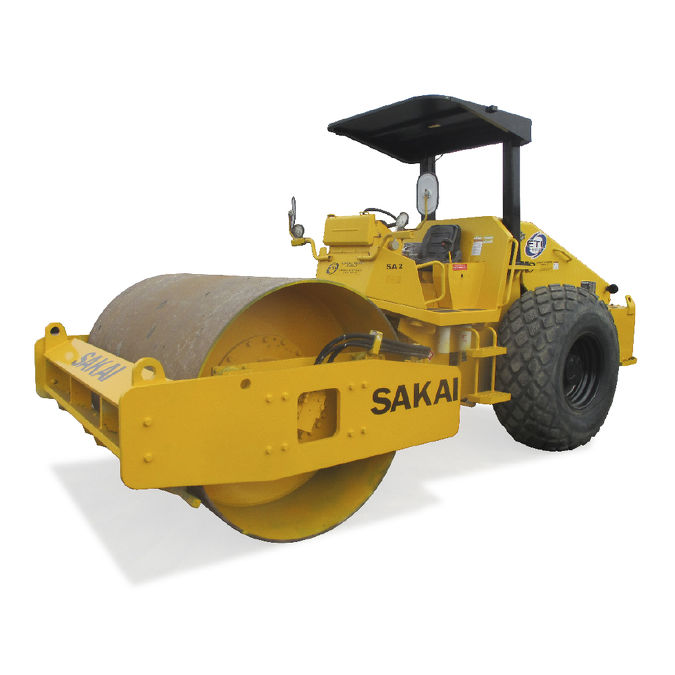

Sakai SV512D

Sakai SV512D

Excellent performance

  • Well-balanced front and rear weight distribution contributes to excellent traction and slope climbing ability.
  • The amplitude of the largest in the world class carries out greatest compaction.

Easy operation and riding comfort

  • Despite powerful vibration, the chassis and operator are fully protected from vibration thanks to SAKAI's patented, unique vibration isolation system.
  • Due to the rubber isolator mounted operator deck, the operator's riding comfort is excellent, and electrical instruments and gauges are free from vibration.

Excellent serviceability

  • The engine and hydraulic components are enclosed in a compartment. The engine hood opens fully for easy access to engine and hydraulic components for service and maintenance.
  • Large ball bearing and taper bearings are employed in the centerpin mechanism to prolong service life and lubrication intervals.

  • Operating Weight10,500 kg
    Load On Front5,450 kg
    Load On Rear5,050 kg
    Overall Length5,740 mm
    Overall Width2,300 mm
    Rolling Width2,130 mm
    Wheelbase2,970 mm
    EnginePerkins
    Engine Model 1104C-44TA Diesel Engine With Turbo Charger
    Engine TypeWater-cooled, 4-cycle, 4-cylinder in-line, vertical mounted overhead valve, direct injection type
    Vibrating System TransmissionHydrostatic Transmission
    Vibrating System VibratorEccentric Shaft Type
